MBR1535CTPbF - Schottky Rectifier

Name: MBR1535CTPbF
SKU: MBR1535CTPbF-831026

Vishay

The MBR1535CTPbF by Vishay is a Schottky Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	MBR1535CTPbF
Manufacturer	Vishay
File Size	126.50 KB
Description	Schottky Rectifier
Datasheet	MBR1535CTPbF-Vishay.pdf

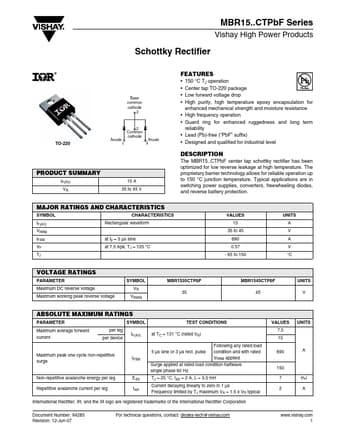

Additional preview pages of the MBR1535CTPbF datasheet.

The MBR15..CTPbF center tap schottky rectifier has been optimized for low reverse leakage at high temperature.

150 °C TJ operation Center tap TO-220 package Low forward voltage drop High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance High frequency operation Guard ring for enhanced ruggedness and long term reliability Lead (Pb)-free (“PbF” suffix) Designed and qualified for industrial level Base common cathode 2 TO-220 Anode 1 2 Common cathode Anode 3.
