LPT-4545 - Inductors/Transformers

LPT-4545 Description

www.vishay.com LPT-4545 Vishay Dale Inductors/Transformers Customizable, Surface Mount Torodial, Kool-Mu®, Powdered Iron and MPP Cores Note LPT 4545 MODEL SIZE 100 μH INDUCTANCE VALUE ± 15 % INDUCTANCE TOLERANCE A CORE/HEIGHT K = KOOL MU® (A) P = POWDERED IRON (B) M = MPP (C) ER PAC.

LPT-4545 Applications

* Designed to support the growing need for efficient DC/DC converters in battery operated equipment
* Two separate windings provide versatility by ability to connect windings in series or parallel
* Dielectric withstanding voltage: 500 VRMS, 60 Hz, 5 s
* Operating tem

📥 Download Datasheet

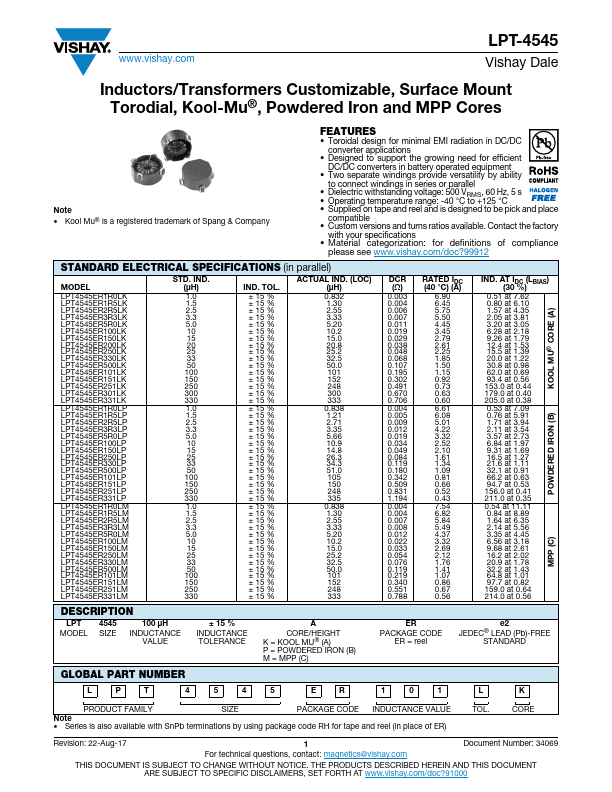

Preview of LPT-4545 PDF

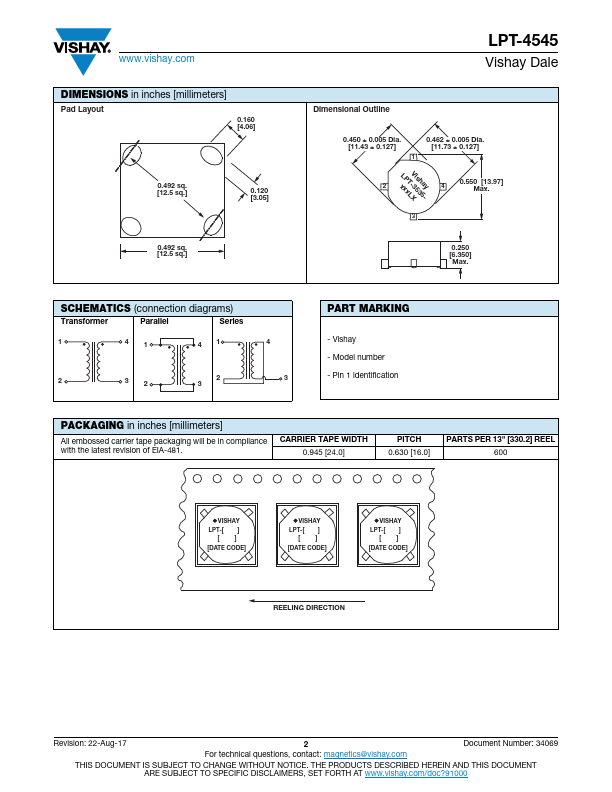

datasheet Preview Page 2 datasheet Preview Page 3
