LH1550AAB1 1 Form A Solid-State Relay

LH1550AAB1 Description

www.vishay.com LH1550AAB1, LH1550AAB1TR, LH1550AT1 Vishay Semiconductors 1 Form A Solid-State Relay (Normally Open) .
The LH1550 is a single channel solid-state relay in a 6 pin package.

LH1550AAB1 Features

* Isolation test voltage 5300 VRMS A1 6 S1
* Typical RON 22 Ω
* Load voltage 350 V C2 5 NC
* Load current 100 mA
* Clean bounce free switching 3 4 S2
* Low power consumption
* Material categorization: for definitions of compliance

LH1550AAB1 Applications

* It is constructed using a GaAlAs LED for actuation control and MOSFET switches for the output. APPLICATIONS
* General telecom switching
* Security equipment
* Instrumentation
* Industrial controls AGENCY APPROVALS
* UL 1577
* cUL
* DIN EN 607

📥 Download Datasheet

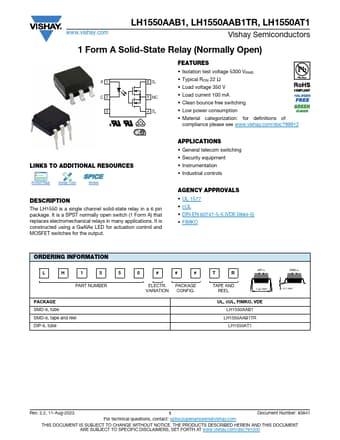

Preview of LH1550AAB1 PDF
