KBP08M, KBP005M - Glass Passivated Single-Phase Bridge Rectifier

Vishay

The KBP08M by Vishay is a Glass Passivated Single-Phase Bridge Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

KBP08M Glass Passivated Single-Phase Bridge Rectifier by Vishay - Datasheet Preview — Official preview page of the KBP08M Glass Passivated Single-Phase Bridge Rectifier datasheet (Vishay).

Datasheet Details

Part number	KBP08M, KBP005M
Manufacturer	Vishay
File Size	89.46 KB
Description	Glass Passivated Single-Phase Bridge Rectifier
Datasheet	KBP005M-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: KBP08M, KBP005M. Please refer to the document for exact specifications by model.

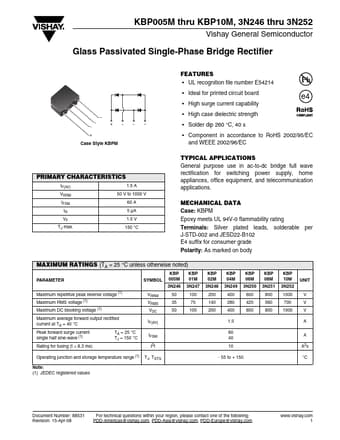

Additional preview pages of the KBP08M datasheet.

KBP08M Product details

Features

UL recognition file number E54214.
Ideal for printed circuit board.
High surge current capability e4.
High case dielectric strength.
Solder dip 260 °C, 40 s.
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
