IRFP9240 Power MOSFET

Vishay

Description

www.vishay.com IRFP9240 Vishay Siliconix Power MOSFET TO-247AC S S D G G D P-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (max.) (Ω) Qg (max.
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

📥 Download Datasheet

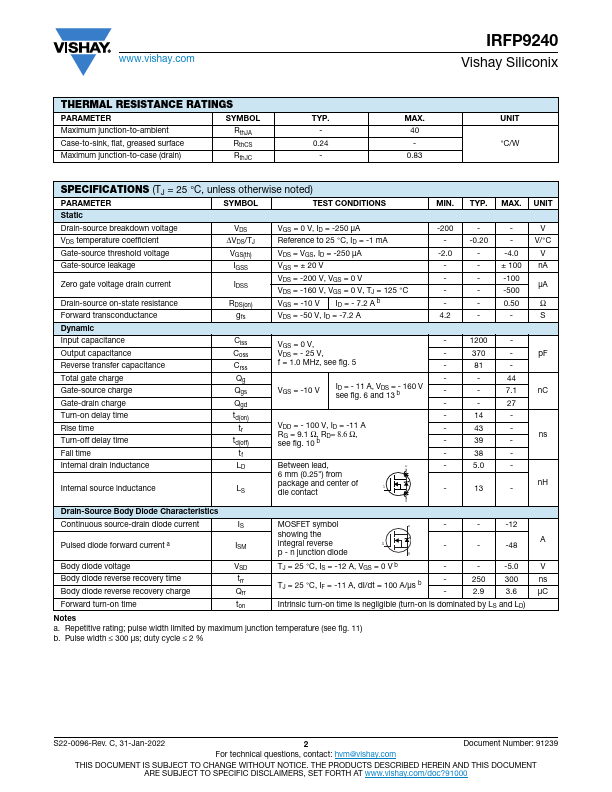

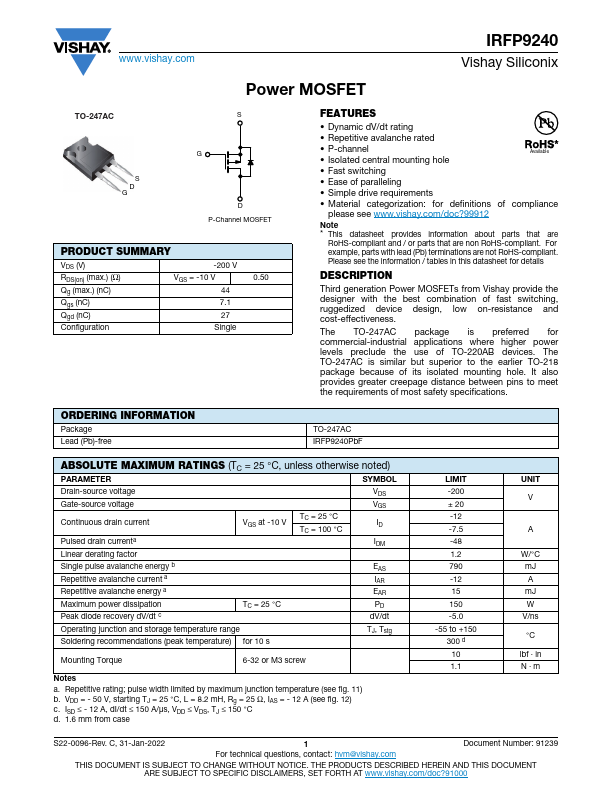

IRFP9240 Datasheet Preview — Preview of IRFP9240 PDF

Datasheet Specifications

Part number: IRFP9240
Manufacturer: Vishay ↗
File Size: 1.32 MB
Datasheet: IRFP9240-Vishay.pdf
Description: Power MOSFET

Features

* Dynamic dV/dt rating
* Repetitive avalanche rated
* P-channel
* Isolated central mounting hole Available
* Fast switching
* Ease of paralleling
* Simple drive requirements
* Material categorization: for definitions of complian

Applications

* where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218 package because of its isolated mounting hole. It also provides greater creepage distance between pins to meet the requirements of most safety specifications. ORDERING INFORMAT
