IMSC1008AZ - SMD Power Inductors

Vishay

📥 Download Datasheet

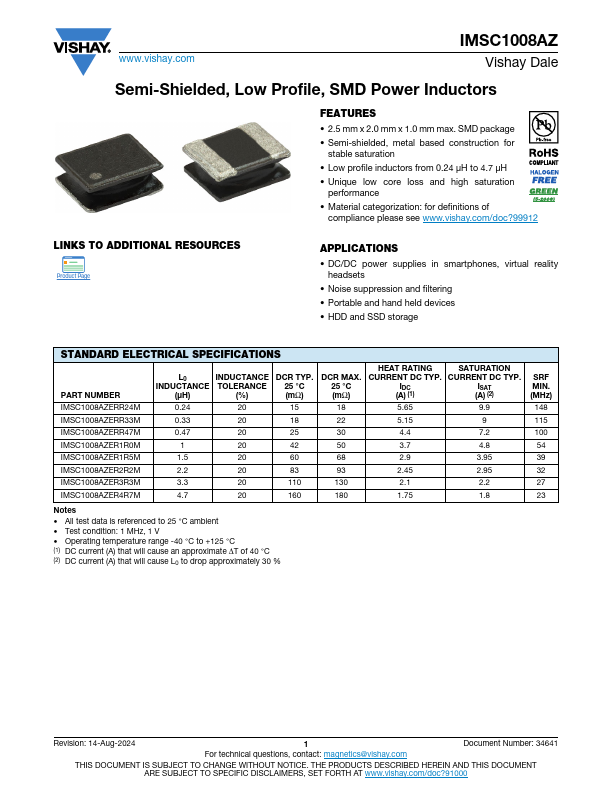

IMSC1008AZ Datasheet Preview — Preview of IMSC1008AZ PDF

Datasheet Details

Part number	IMSC1008AZ
Manufacturer	Vishay
File Size	90.46 KB
Description	SMD Power Inductors
Datasheet	IMSC1008AZ-Vishay.pdf

IMSC1008AZ Product details

Description

IMSC1008AZ MODEL 2.2 μH INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I MSC 1 0 0 8AZ ER 2R2 M PRODUCT FAMILY SIZE PACKAGE CODE ER = tape and reel INDUCTANCE VALUE 2R2 = 2.2 μH INDUCTANCE TOLERANCE M = ± 20 % Revision: 14-Aug-2024 2 Document Number: 34641 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

Features

2.5 mm x 2.0 mm x 1.0 mm max. SMD package.
Semi-shielded, metal based construction for stable saturation.
Low profile inductors from 0.24 μH to 4.7 μH.
Unique low core loss and high saturation performance.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO.
