IHXL1100OZ-31 - Through-Hole Inductor

Vishay

📥 Download Datasheet

IHXL1100OZ-31 Datasheet Preview — Preview of IHXL1100OZ-31 PDF

Datasheet Details

Part number	IHXL1100OZ-31
Manufacturer	Vishay
File Size	366.38 KB
Description	Through-Hole Inductor
Datasheet	IHXL1100OZ-31-Vishay.pdf

IHXL1100OZ-31 Product details

Description

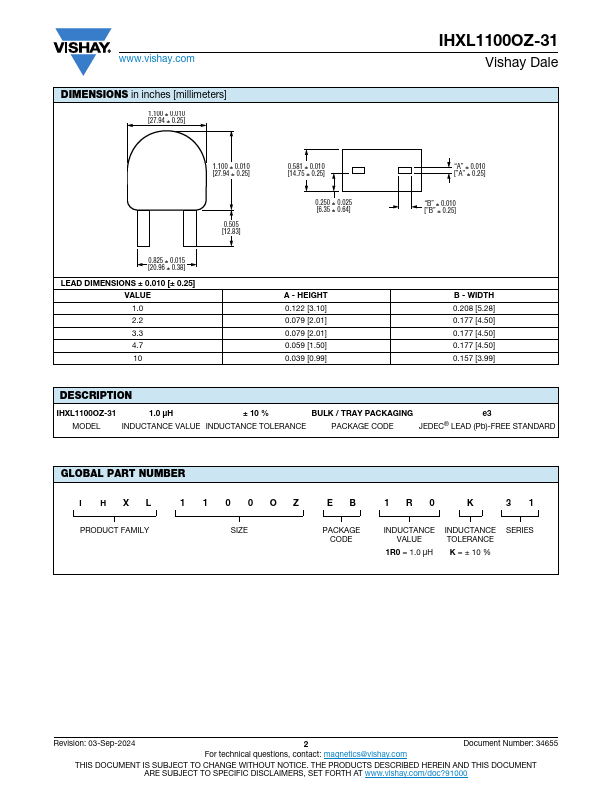

IHXL1100OZ-31 1.0 μH ± 10 % BULK / TRAY PACKAGING e3 MODEL INDUCTANCE VALUE INDUCTANCE TOLERANCE PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HXL 1 1 0 0OZ PRODUCT FAMILY SIZE EB PACKAGE CODE 1R0 K 31 INDUCTANCE VALUE 1R0 = 1.0 μH INDUCTANCE TOLERANCE K = ± 10 % SERIES Revision: 03-Sep-2024 2 Document Number: 34655 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN A

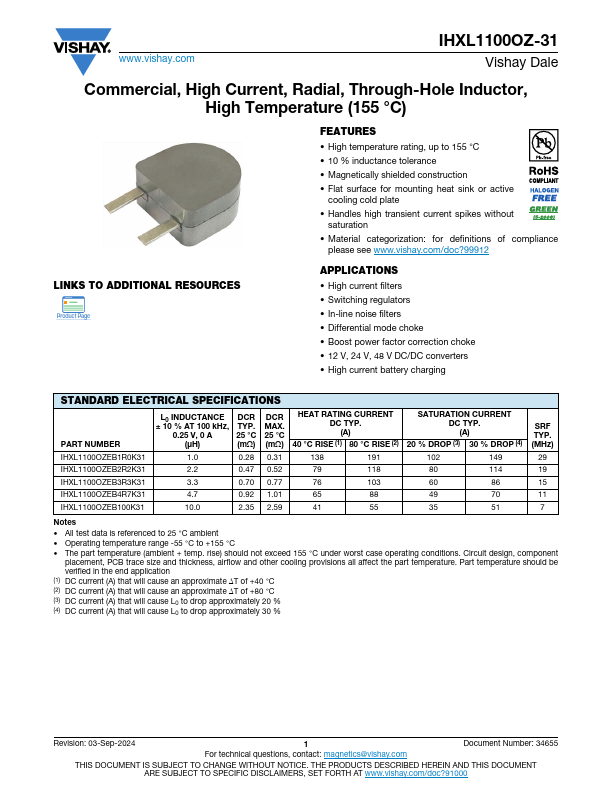

Features

High temperature rating, up to 155 °C.
10 % inductance tolerance.
Magnetically shielded construction.
Flat surface for mounting heat sink or active cooling cold plate.
Handles high transient current spikes without saturation.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
