Description
IHSR2525CZ-A1 MODEL
0.080 μH INDUCTANCE VALUE
± 20 % INDUCTANCE TOLERANCE
ER
e3
PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I HSR
2 5 2 5CZ
ER
8 0N
M
A1
PRODUCT FAMILY
SIZE
PACKAGE CODE
INDUCTANCE INDUCTANCE
VALUE
TOLERANCE
ER = tape and reel 80N = 0.080 μH M = ± 20 %
SERIES
INDUCTANCE (μH) TEMPERATURE (°C)
INDUCTANCE (μH) Q

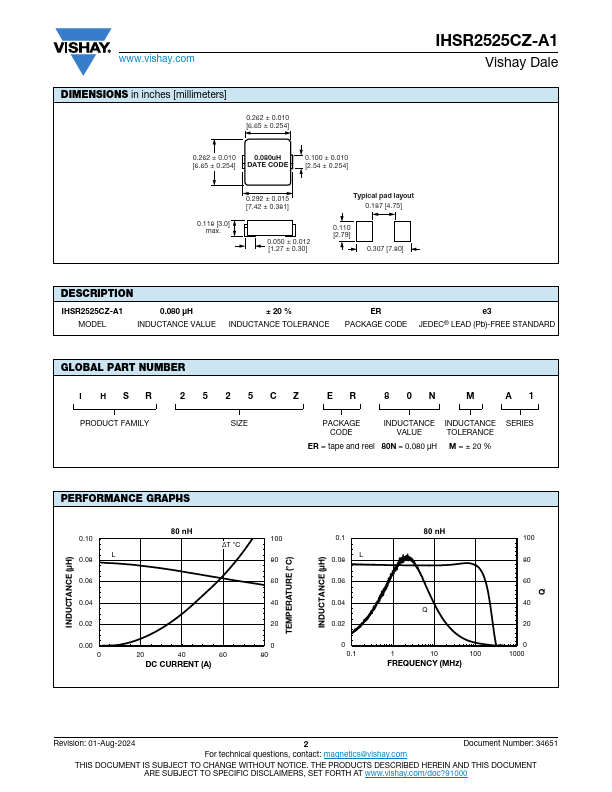

PERFORMANCE GRAPHS
0.10 L
0.08 0.06 0.04 0.02 0.00
0
80 nH
ΔT °C
20
40
60
DC CURRENT (A)
100 80 60 40 20 0 80
0.1 L
0.08 0

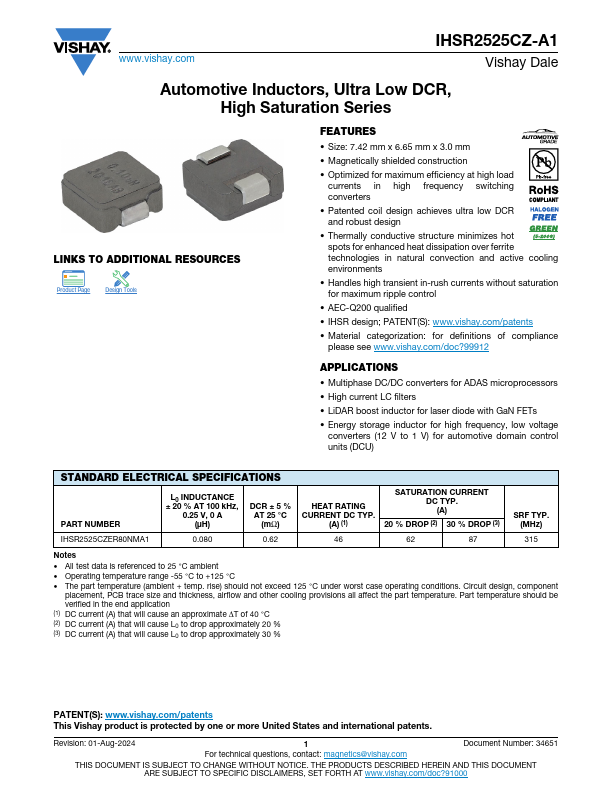

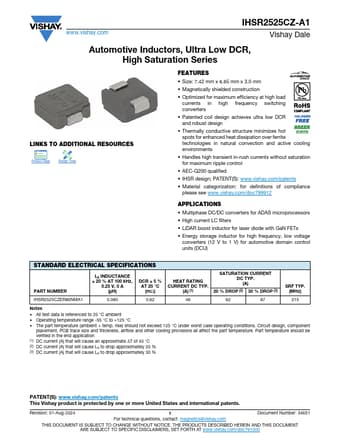

Features
- Size: 7.42 mm x 6.65 mm x 3.0 mm.
- Magnetically shielded construction.
- Optimized for maximum efficiency at high load
currents in high frequency switching converters.
- Patented coil design achieves ultra low DCR and robust design.
- Thermally conductive structure minimizes hot spots for enhanced heat dissipation over ferrite technologies in natural convection and active cooling environments.
- Handles high transient in-rush currents without saturat.
IHSR2525CZ-A1-Vishay.pdf
