IHLP-5050FD-AP - Automotive Inductors

Vishay

📥 Download Datasheet

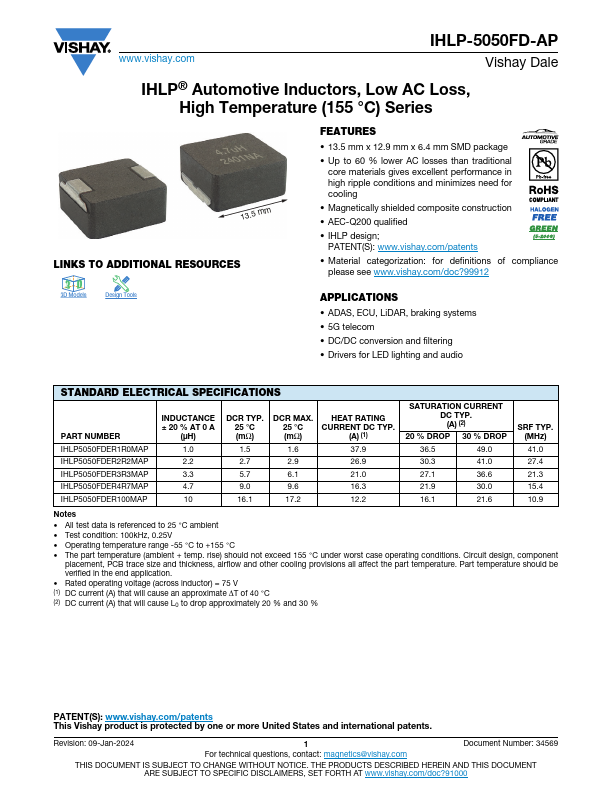

IHLP-5050FD-AP Datasheet Preview — Preview of IHLP-5050FD-AP PDF

Datasheet Details

Part number	IHLP-5050FD-AP
Manufacturer	Vishay
File Size	396.58 KB
Description	Automotive Inductors
Datasheet	IHLP-5050FD-AP-Vishay.pdf

IHLP-5050FD-AP Product details

Description

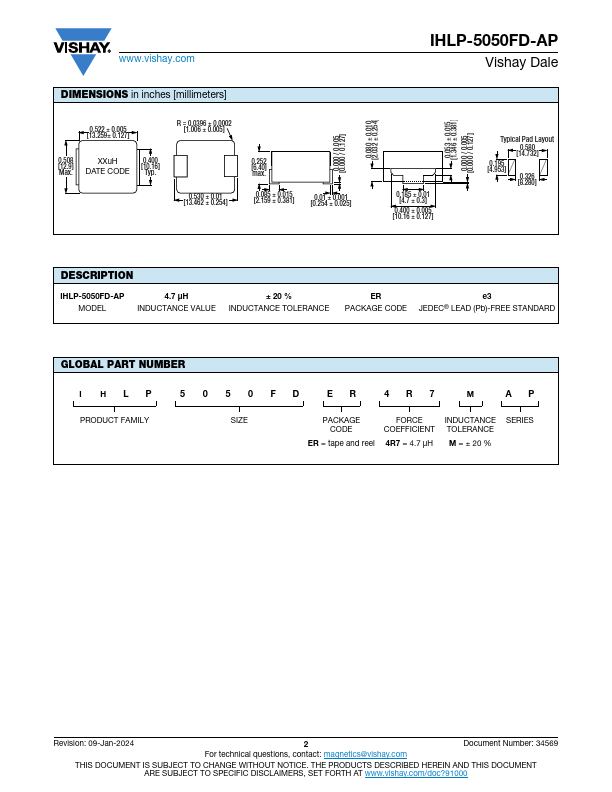

IHLP-5050FD-AP 4.7 μH ± 20 % MODEL INDUCTANCE VALUE INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLP 5 0 5 0FD ER 4R7 M AP PRODUCT FAMILY SIZE PACKAGE CODE ER = tape and reel FORCE COEFFICIENT 4R7 = 4.7 μH INDUCTANCE TOLERANCE M = ± 20 % SERIES Revision: 09-Jan-2024 2 Document Number: 34569 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN

Features

13.5 mm x 12.9 mm x 6.4 mm SMD package.
Up to 60 % lower AC losses than traditional core materials gives excellent performance in high ripple conditions and minimizes need for cooling.
Magnetically shielded composite construction.
AEC-Q200 qualified.
IHLP design; PATENT(S): www. vishay. com/patents.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
