IHLP-2525CZ-07 - Commercial Inductor

Vishay

📥 Download Datasheet

IHLP-2525CZ-07 Datasheet Preview — Preview of IHLP-2525CZ-07 PDF

Datasheet Details

Part number	IHLP-2525CZ-07
Manufacturer	Vishay
File Size	143.05 KB
Description	Commercial Inductor
Datasheet	IHLP-2525CZ-07_Vishay.pdf

IHLP-2525CZ-07 Product details

Description

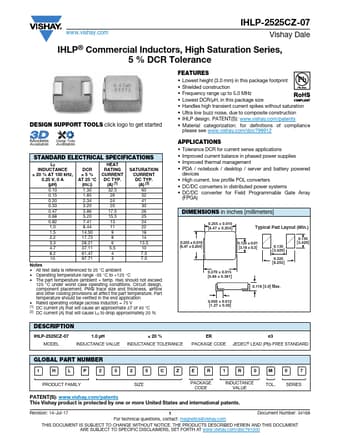

IHLP-2525CZ-07 MODEL 1.0 μH INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HL P 2 5 2 5CZER1R0M0 7 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE PATENT(S): www.vishay.com/patents This Vishay product is protected by one or more United States and international patents.TOL.SERIES Revision: 14-Jul-17 1 Document Number: 34168 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHAN

Features

Lowest height (3.0 mm) in this package footprint.
Shielded construction.
Frequency range up to 5.0 MHz.
Lowest DCR/μH, in this package size.
Handles high transient current spikes without saturation.
Ultra low buzz noise, due to composite construction.
IHLP design. PATENT(S): www. vishay. com/patents.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
