IHLP-2020BZ-51 - Commercial Inductors

Vishay

📥 Download Datasheet

IHLP-2020BZ-51 Datasheet Preview — Preview of IHLP-2020BZ-51 PDF

Datasheet Details

Part number	IHLP-2020BZ-51
Manufacturer	Vishay
File Size	442.44 KB
Description	Commercial Inductors
Datasheet	IHLP-2020BZ-51-Vishay.pdf

IHLP-2020BZ-51 Product details

Description

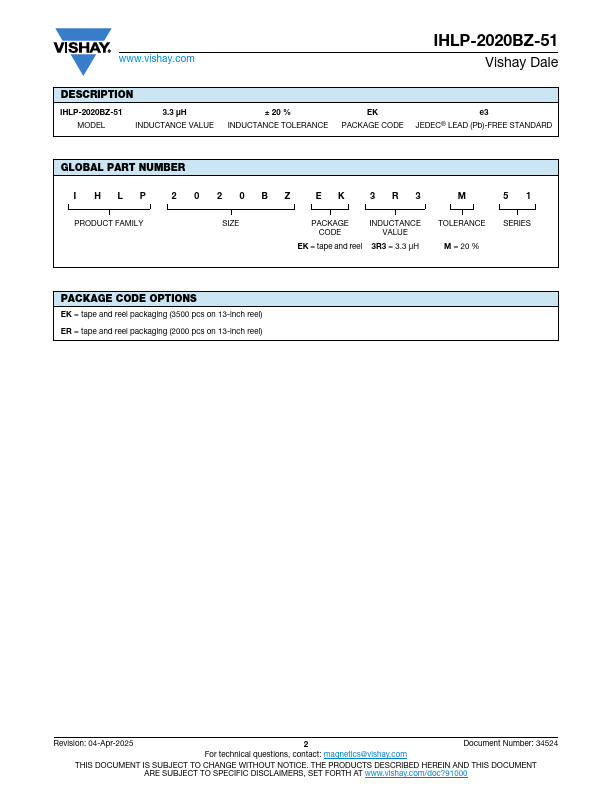

IHLP-2020BZ-51 3.3 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE EK e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLP 2 0 2 0BZ EK 3R3 M 51 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE EK = tape and reel 3R3 = 3.3 μH TOLERANCE M = 20 % SERIES PACKAGE CODE OPTIONS EK = tape and reel packaging (3500 pcs on 13-inch reel) ER = tape and reel packaging (2000 pcs on 13-inch reel) Revision: 04-Apr-2025 2 Document Number: 34524 For technical q

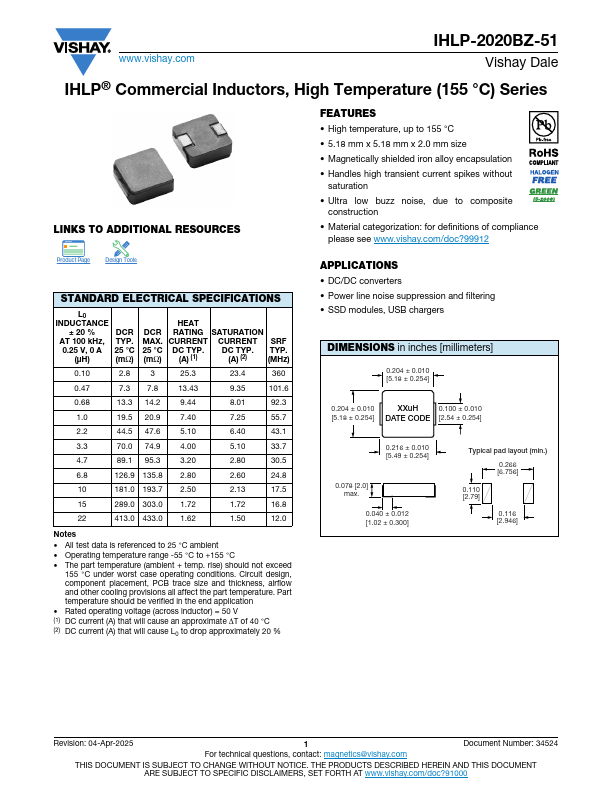

Features

High temperature, up to 155 °C.
5.18 mm x 5.18 mm x 2.0 mm size.
Magnetically shielded iron alloy encapsulation.
Handles high transient current spikes without saturation.
Ultra low buzz noise, due to composite construction.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Product Page Design Tools.
