IHLL-1008AB-1Z - Commercial Power Inductor

Vishay

📥 Download Datasheet

IHLL-1008AB-1Z Datasheet Preview — Preview of IHLL-1008AB-1Z PDF

Datasheet Details

Part number	IHLL-1008AB-1Z
Manufacturer	Vishay
File Size	93.52 KB
Description	Commercial Power Inductor
Datasheet	IHLL-1008AB-1Z-Vishay.pdf

IHLL-1008AB-1Z Product details

Description

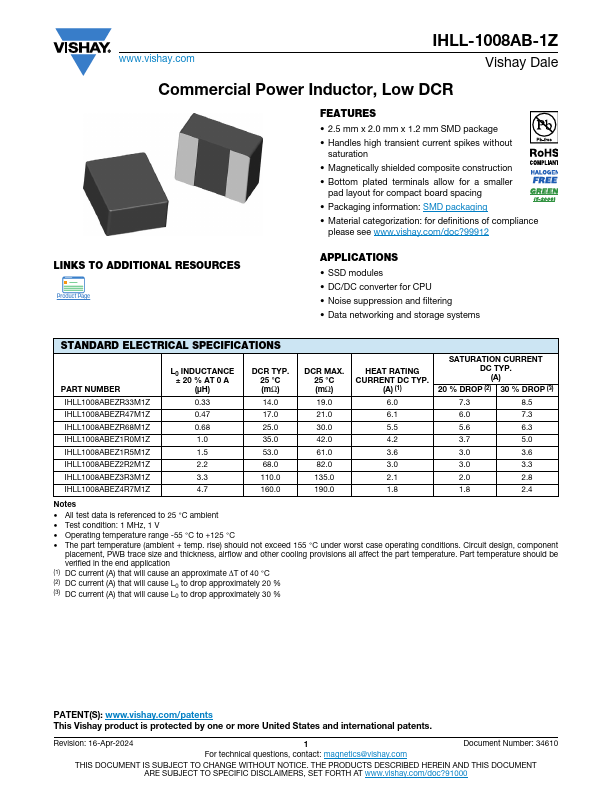

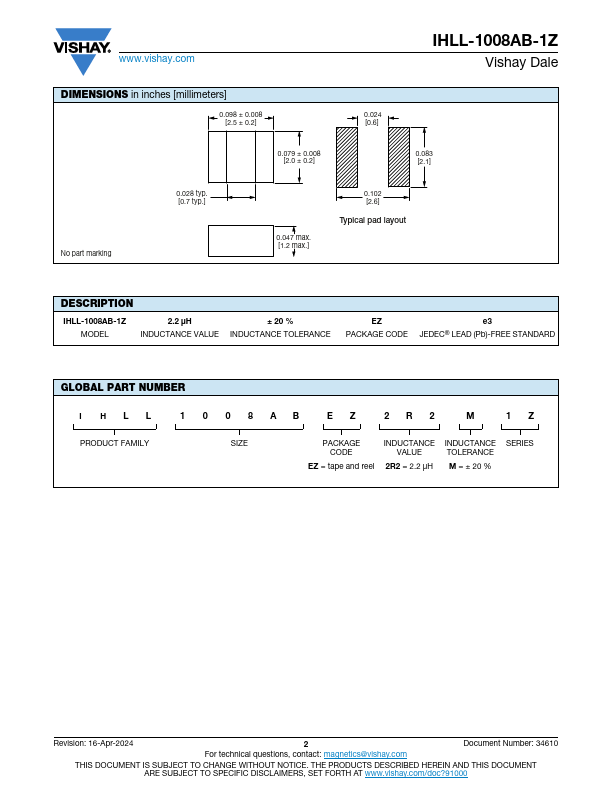

IHLL-1008AB-1Z 2.2 μH ± 20 % MODEL INDUCTANCE VALUE INDUCTANCE TOLERANCE EZ e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLL 1 0 0 8AB EZ 2R2 M 1Z PRODUCT FAMILY SIZE PACKAGE CODE EZ = tape and reel INDUCTANCE VALUE 2R2 = 2.2 μH INDUCTANCE TOLERANCE M = ± 20 % SERIES Revision: 16-Apr-2024 2 Document Number: 34610 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN

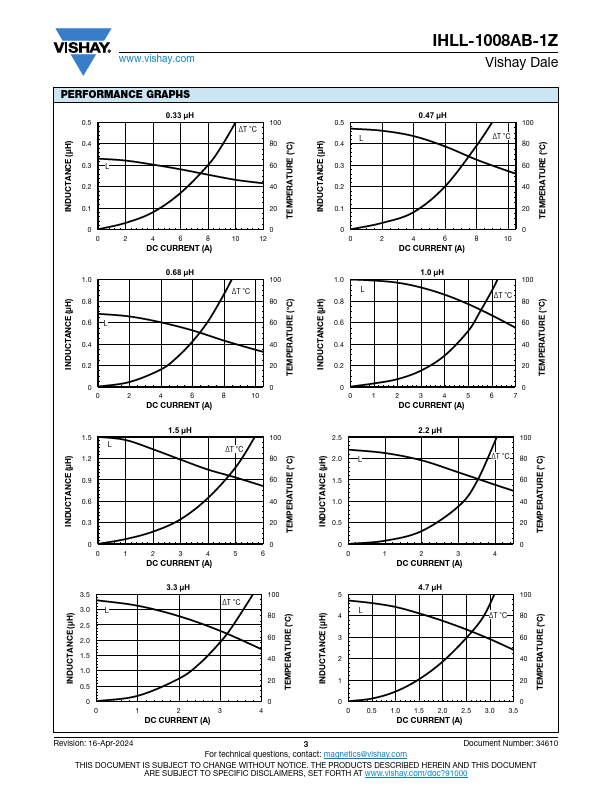

Features

2.5 mm x 2.0 mm x 1.2 mm SMD package.
Handles high transient current spikes without saturation.
Magnetically shielded composite construction.
Bottom plated terminals allow for a smaller pad layout for compact board spacing.
Packaging information: SMD packaging.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 LINKS TO.
