IHDM-1107BB - Through-Hole Inductor

Vishay

📥 Download Datasheet

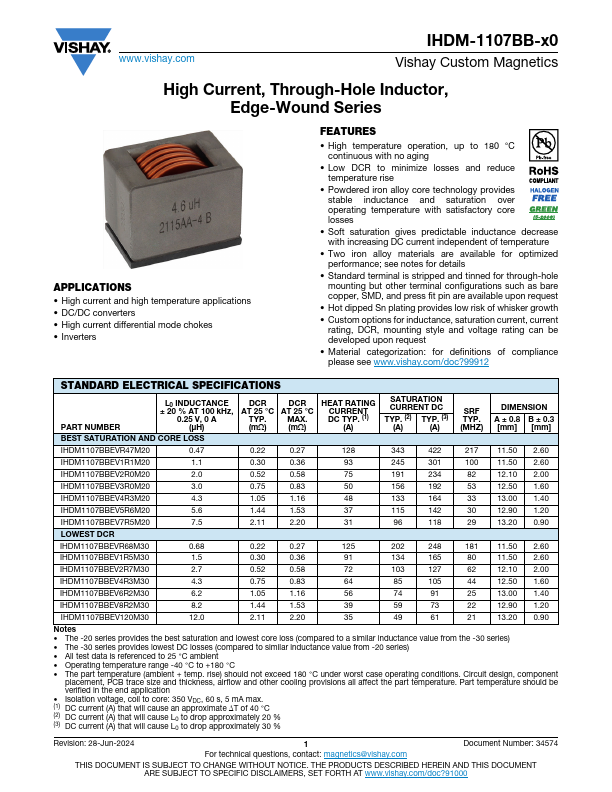

IHDM-1107BB Datasheet Preview — Preview of IHDM-1107BB PDF

Datasheet Details

Part number	IHDM-1107BB
Manufacturer	Vishay
File Size	865.33 KB
Description	Through-Hole Inductor
Datasheet	IHDM-1107BB-Vishay.pdf

IHDM-1107BB Product details

Description

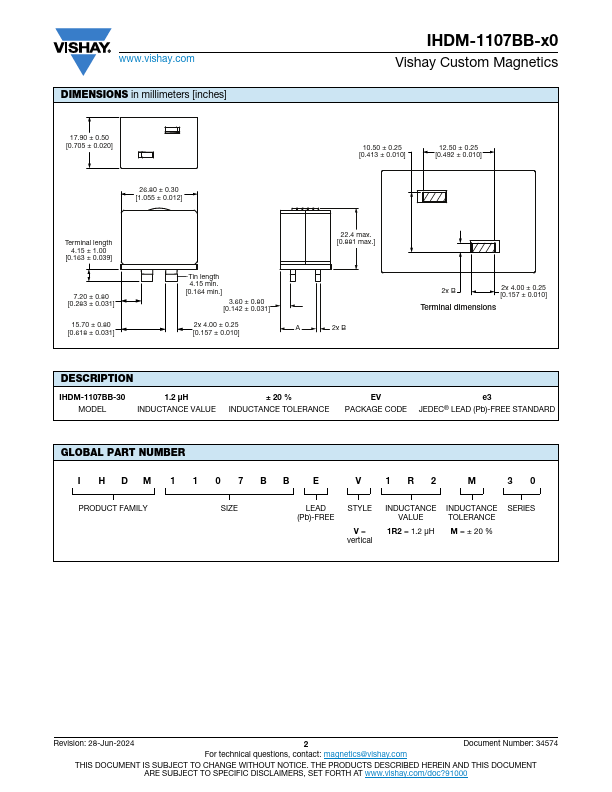

IHDM-1107BB-30 1.2 μH ± 20 % MODEL INDUCTANCE VALUE INDUCTANCE TOLERANCE EV e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HDM 1 1 0 7 B B E V 1R2 M 30 PRODUCT FAMILY SIZE LEAD (Pb)-FREE STYLE V= vertical INDUCTANCE VALUE 1R2 = 1.2 μH INDUCTANCE TOLERANCE M = ± 20 % SERIES Revision: 28-Jun-2024 2 Document Number: 34574 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HE

Features

High temperature operation, up to 180 °C continuous with no aging.
Low DCR to minimize losses and reduce temperature rise.
Powdered iron alloy core technology provides stable inductance and saturation over operating temperature with satisfactory core losses.
Soft saturation gives predictable inductance decrease with increasing DC current independent of temperature.
Two iron alloy materials are available for optimized performance; see notes for detail.
