IHDF-1300AE-1A - High Current Inductors

Vishay

📥 Download Datasheet

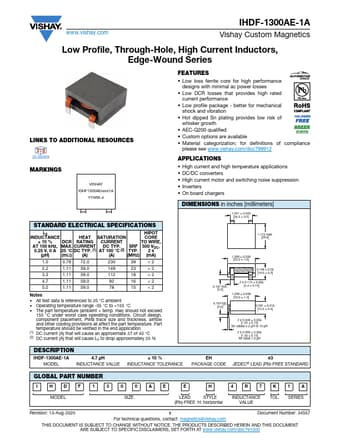

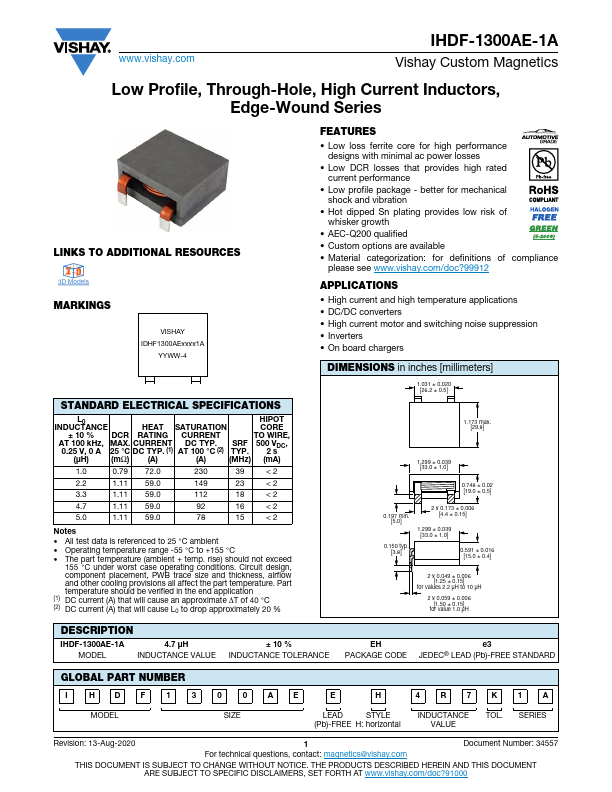

IHDF-1300AE-1A Datasheet Preview — Preview of IHDF-1300AE-1A PDF

Datasheet Details

Part number	IHDF-1300AE-1A
Manufacturer	Vishay
File Size	308.26 KB
Description	High Current Inductors
Datasheet	IHDF-1300AE-1A-Vishay.pdf

IHDF-1300AE-1A Product details

Description

IHDF-1300AE-1A 4.7 μH MODEL INDUCTANCE VALUE ± 10 % INDUCTANCE TOLERANCE EH e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HD F 1 3 0 0 A E E H 4 R 7 K 1 A MODEL SIZE LEAD STYLE (Pb)-FREE H: horizontal INDUCTANCE VALUE TOL.SERIES Revision: 13-Aug-2020 1 Document Number: 34557 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJE

Features

Low loss ferrite core for high performance designs with minimal ac power losses.
Low DCR losses that provides high rated current performance.
Low profile package - better for mechanical shock and vibration.
Hot dipped Sn plating provides low risk of whisker growth.
AEC-Q200 qualified.
Custom options are available.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
