IHCL-4040DZ-5A22 - High Current Coupled Inductor

Vishay

📥 Download Datasheet

IHCL-4040DZ-5A22 Datasheet Preview — Preview of IHCL-4040DZ-5A22 PDF

Datasheet Details

Part number	IHCL-4040DZ-5A22
Manufacturer	Vishay
File Size	125.38 KB
Description	High Current Coupled Inductor
Datasheet	IHCL-4040DZ-5A22-Vishay.pdf

IHCL-4040DZ-5A22 Product details

Description

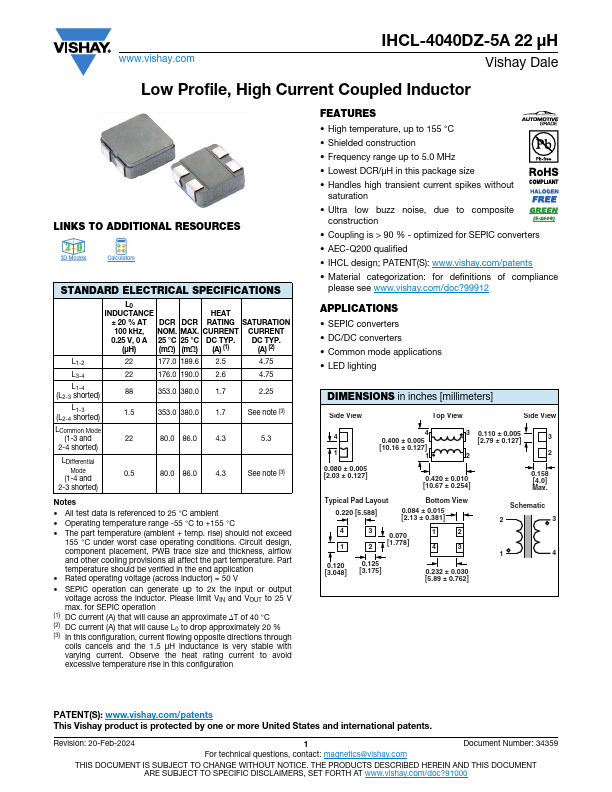

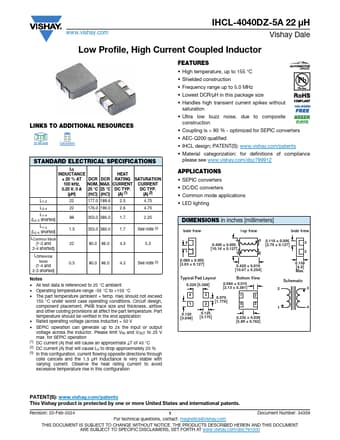

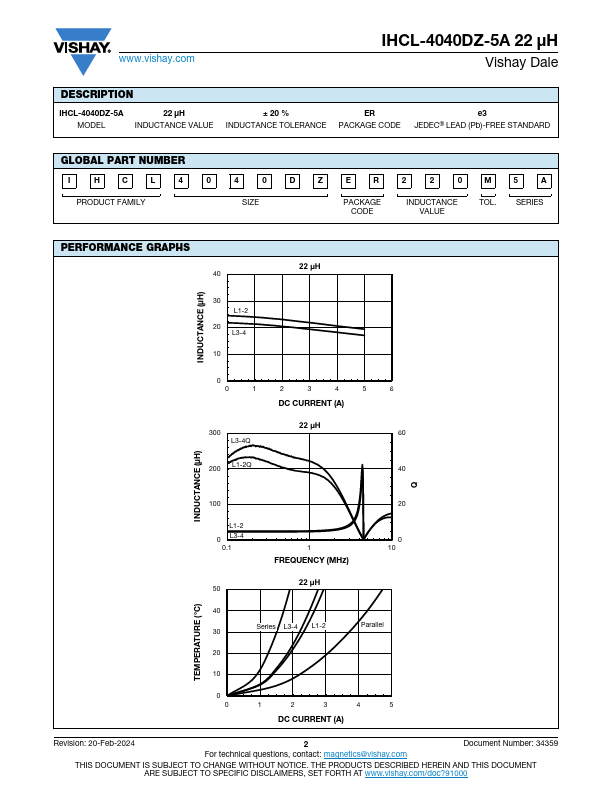

IHCL-4040DZ-5A 22 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER PACKAGE CODE e3 JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I H C L 4 0 4 0 D Z E R 2 2 0 M 5 A PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL.SERIES PERFORMANCE GRAPHS 40 22 µH INDUCTANCE (μH) 30 L1-2 20 L3-4 10 0 0 1 300 L3-4Q 200 L1-2Q 2 3 4 5 DC CURRENT (A) 22 µH 6 60 40 Q INDUCTANCE (μH) TEMPERATURE (°C) 100 20 L1-2 0 L3-4 0.1 1 0 10 FREQUENCY (MH

Features

High temperature, up to 155 °C.
Shielded construction.
Frequency range up to 5.0 MHz.
Lowest DCR/μH in this package size.
Handles high transient current spikes without saturation.
Ultra low buzz noise, due to composite construction.
Coupling is > 90 % - optimized for SEPIC converters.
AEC-Q200 qualified.
IHCL design; PATENT(S): www. vishay. com/patents.
Material categorization: for definitions of compliance.
