IFDC2020CZ - Ferrite Power Inductor

Vishay

The IFDC2020CZ by Vishay is a Ferrite Power Inductor. Below is the official datasheet preview.

📥 Download Datasheet

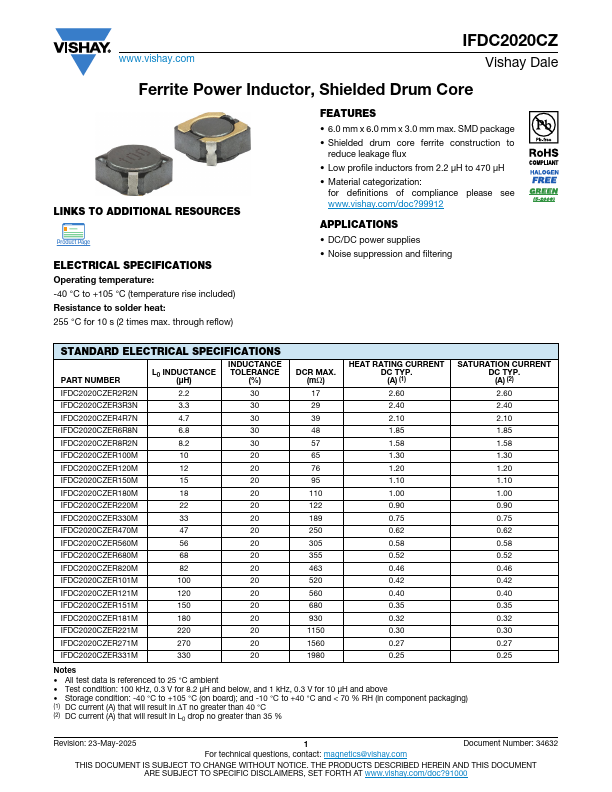

IFDC2020CZ Ferrite Power Inductor by Vishay - Datasheet Preview — Official preview page of the **IFDC2020CZ** Ferrite Power Inductor datasheet (Vishay).

Datasheet Details

Part number	IFDC2020CZ
Manufacturer	Vishay
File Size	77.57 KB
Description	Ferrite Power Inductor
Datasheet	IFDC2020CZ-Vishay.pdf

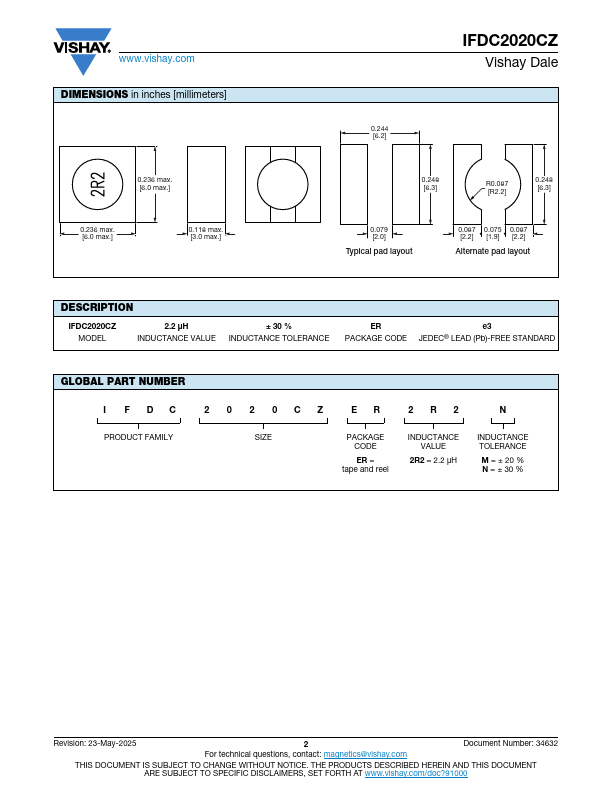

Additional preview pages of the IFDC2020CZ datasheet.

IFDC2020CZ Product details

Description

IFDC2020CZ MODEL 2.2 μH INDUCTANCE VALUE ± 30 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I FDC 2 0 2 0CZ ER 2R2 N PRODUCT FAMILY SIZE PACKAGE CODE ER = tape and reel INDUCTANCE VALUE 2R2 = 2.2 μH INDUCTANCE TOLERANCE M = ± 20 % N = ± 30 % Revision: 23-May-2025 2 Document Number: 34632 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN AND THI

Features

6.0 mm x 6.0 mm x 3.0 mm max. SMD package.
Shielded drum core ferrite construction to reduce leakage flux.
Low profile inductors from 2.2 μH to 470 μH.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
