HIK470, HIK101 High Voltage Ceramic Singlelayer DC Disc Capacitors

HIK470 Description

www.vishay.com HIK Series Vishay Draloric High Voltage Ceramic Singlelayer DC Disc Capacitors, Class 2, Low Loss (0.5 %), 15 kVDC .
Ceramic Class Ceramic Dielectric Voltage (VDC) Min.

HIK470 Features

* High capacitance in small sizes
* Low losses
* Wide range of different lead styles

HIK470 Applications

* In electronic circuits where low losses and high capacitance per volume are essential, for example:
* SMPS
* DC and pulse high voltage
* X-ray and laser equipment DESIGN The capacitors consist of a ceramic disc which is silver plated on both sides. Connection leads are made o

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HIK470, HIK101. Please refer to the document for exact specifications by model.

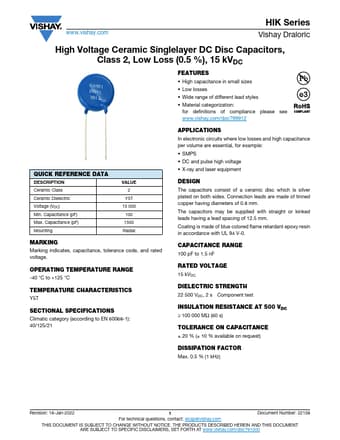

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HIK470, HIK101
Manufacturer
Vishay ↗
File Size
74.55 KB
Datasheet
HIK101-Vishay.pdf
Description
High Voltage Ceramic Singlelayer DC Disc Capacitors
Note
This datasheet PDF includes multiple part numbers: HIK470, HIK101.
Please refer to the document for exact specifications by model.
