GBPC2506, GBPC12005 - Glass Passivated Single-Phase Bridge Rectifier

Vishay

Datasheet Details

Part number	GBPC2506, GBPC12005
Manufacturer	Vishay
File Size	91.52 KB
Description	Glass Passivated Single-Phase Bridge Rectifier

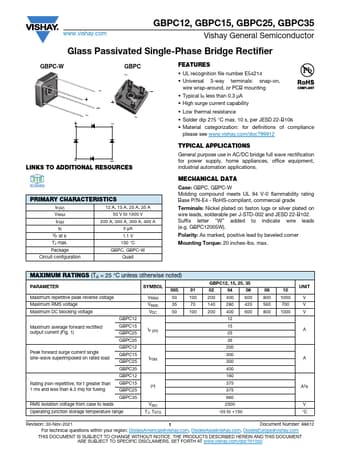

Datasheet	GBPC12005-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: GBPC2506, GBPC12005. Please refer to the document for exact specifications by model.

UL recognition file number E54214.
Universal 3-way terminals: snap-on, wire wrap-around, or PCB mounting.
Typical IR less than 0.3 μA.
High surge current capability.
Low thermal resistance.
Solder dip 275 °C max. 10 s, per JESD 22-B106.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
