FC1005 - High Frequency Resistor

FC1005 Description

www.vishay.com FC Vishay Dale Thin Film High Frequency (up to 40 GHz) Resistor, Thin Film Surface Mount Chip FC series chip resistors are designed .

FC1005 Features

* Small standard size 0402 case size
* Edge trimmed block resistors
* High purity alumina substrate
* Ohmic range (10  to 1000 ) Available Available
* Small internal reactance (< 10 m)
* Low TCR (down to ± 25 ppm/°C) Available
* Epoxy

📥 Download Datasheet

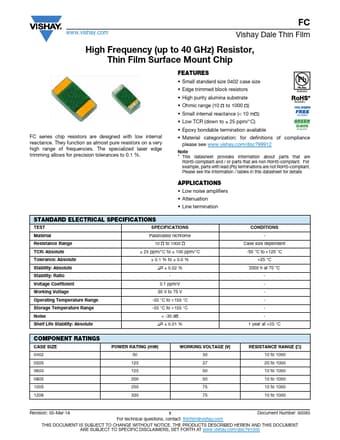

Preview of FC1005 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FC1005
Manufacturer
Vishay ↗
File Size
99.99 KB
Datasheet
FC1005-Vishay.pdf
Description
High Frequency Resistor
