ERL20 - Metal Film Resistors

Product Overview

Vishay

Part number	ERL20
Manufacturer	Vishay
File Size	81.87 KB
Description	Metal Film Resistors
Datasheet	ERL20 Datasheet
Note	This datasheet PDF includes multiple part numbers: ERL20, ERL05. Please refer to the document for exact specifications by model.

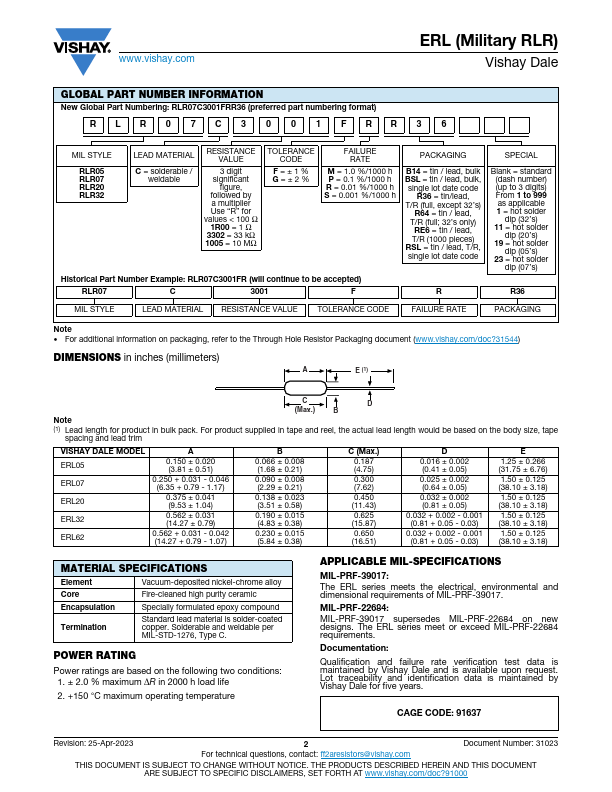

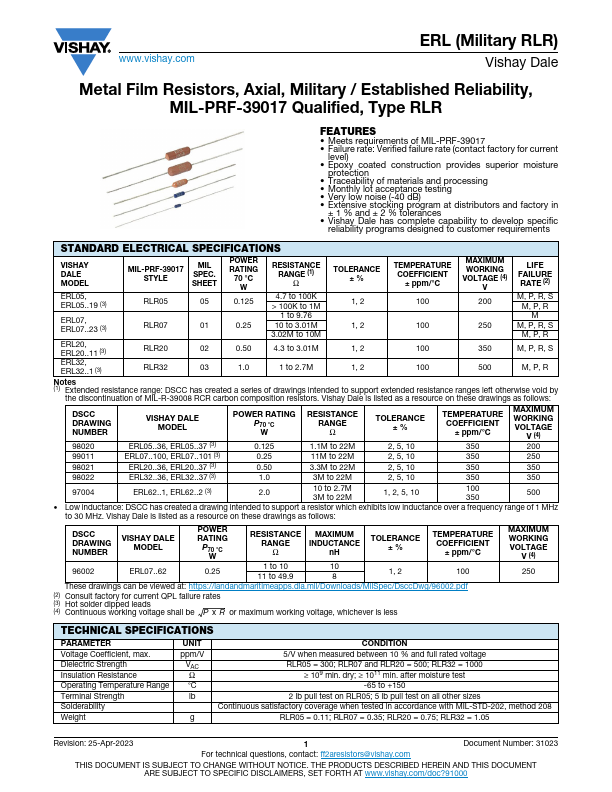

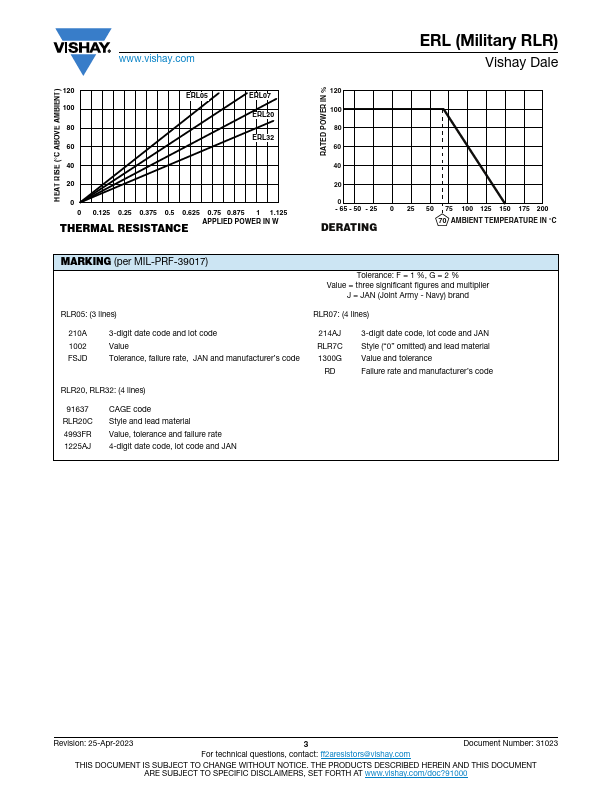

Additional preview pages of the ERL20 datasheet.

Meets requirements of MIL-PRF-39017.
Failure rate: Verified failure rate (contact factory for current level).
Epoxy coated construction provides superior moisture protection.
Traceability of materials and processing.
Monthly lot acceptance testing.
Very low noise (-40 dB).
Extensive stocking program at distributors and factory in ± 1 % and ± 2 % tolerances.
Vishay Dale has complete capability to develop specific reliability.
