Download the DZ23C27-G datasheet PDF.
This datasheet also covers the DZ23C2V7-G variant, as both devices belong to the same small signal zener diodes family and are provided as variant models within a single manufacturer datasheet.
Features
- Dual silicon planar Zener diodes, common cathode.
- The Zener voltages are graded according to the international E24 standard. Standard Zener voltage tolerance is ± 5 %.
- The parameters are valid for both diodes in one case. VZ and Rzj of the two diodes in one case is 5 %.
- AEC-Q101 qualified.
- ESD capability according to AEC-Q101: Human body model > 8 kV Machine model > 800 V.
- Base P/N-G3 - green, commercial grade.
- Material categ.

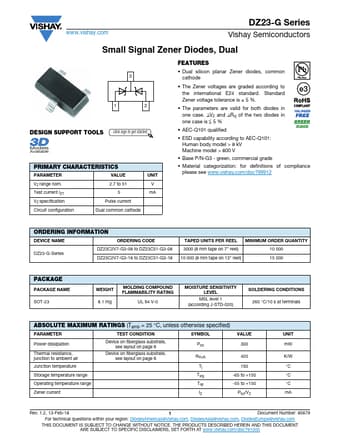

DZ23C27-G Datasheet
