DG419 - Precision CMOS Analog Switches

Download the DG419 datasheet PDF. This datasheet also covers the DG417 variant, as both devices belong to the same precision cmos analog switches family and are provided as variant models within a single manufacturer datasheet.

Description

The DG417, DG418, DG419 monolithic CMOS analog switches were designed to provide high performance switching of analog signals.

Features

  • ± 15 V analog signal range.
  • On-resistance - RDS(on): 20 .
  • Fast switching action - tON: 100 ns.
  • Ultra low power requirements - PD: 35 nW.
  • TTL and CMOS compatible.
  • MiniDIP and SOIC packaging.
  • 44 V supply max. rating.
  • 44 V supply max. rating.
  • Compliant to RoHS directive 2002/95/EC.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DG417-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DG419
Manufacturer Vishay
File Size 225.18 KB
Description Precision CMOS Analog Switches
Datasheet download datasheet DG419 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DG419 Improved / SPST/SPDT Analog Switches Maxim
DG419 Precision CMOS Analog Switches TEMICs
DG419L Precision Monolithic Low-Voltage CMOS Analog Switches Vishay Siliconix
DG419L Logic-compatible Analog Switches Maxim Integrated Products
DG4102 Function/Arbitrary Waveform Generator Guide Manual RIGOL

Other Datasheets by Vishay

Part Number Description
DG419B Precision CMOS Analog Switches
DG411 Precision Monolithic Quad SPST CMOS Analog Switches
DG411HS Precision Monolithic Quad SPST CMOS Analog Switches
DG411L Precision Monolithic Quad SPST Low-Voltage CMOS Analog Switches
DG411LE Quad SPST Switches

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

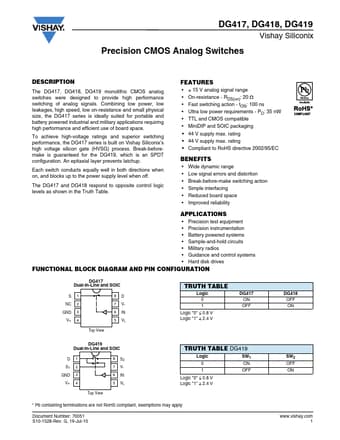

DG417, DG418, DG419 Vishay Siliconix Precision CMOS Analog Switches DESCRIPTION The DG417, DG418, DG419 monolithic CMOS analog switches were designed to provide high performance switching of analog signals. Combining low power, low leakages, high speed, low on-resistance and small physical size, the DG417 series is ideally suited for portable and battery powered industrial and military applications requiring high performance and efficient use of board space. To achieve high-voltage ratings and superior switching performance, the DG417 series is built on Vishay Siliconix’s high voltage silicon gate (HVSG) process. Break-beforemake is guaranteed for the DG419, which is an SPDT configuration. An epitaxial layer prevents latchup.
