DG418B - Precision CMOS Analog Switches

Download the DG418B datasheet PDF (DG417B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for precision cmos analog switches.

Description

The DG417B, DG418B, DG419B monolithic CMOS analog switches were designed to provide high performance switching of analog signals.

Features

  • ± 15 V analog signal range.
  • On-resistance - RDS(on): 15 Ω.
  • Fast switching action - tON: 110 ns.
  • TTL and CMOS compatible.
  • MSOP-8 and SOIC-8 package.
  • Compliant to RoHS directive 2002/95/EC.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DG417B_VishaySiliconix.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DG418B
Manufacturer Vishay
File Size 267.89 KB
Description Precision CMOS Analog Switches
Datasheet download datasheet DG418B Datasheet

📁 Similar Datasheet

  • DG418 - Improved / SPST/SPDT Analog Switches (Maxim)
  • DG418 - Precision CMOS Analog Switches (TEMICs)
  • DG418L - Logic-compatible Analog Switches (Maxim Integrated Products)
  • DG418L - Precision Monolithic Low-Voltage CMOS Analog Switches (Vishay Siliconix)
  • DG4102 - Function/Arbitrary Waveform Generator Guide Manual (RIGOL)
  • DG411 - Monolithic Quad SPST / CMOS Analog Switches (Intersil)
  • DG411 - SPST Analog Switches (Maxim Integrated)
  • DG411 - CMOS Analog Switches (Renesas)
  • DG411F - SPST Analog Switches (Maxim Integrated)
  • DG412 - Monolithic Quad SPST / CMOS Analog Switches (Intersil Corporation)
Other Datasheets by Vishay
  • DG418 - Precision CMOS Analog Switches
  • DG411 - Precision Monolithic Quad SPST CMOS Analog Switches
  • DG411HS - Precision Monolithic Quad SPST CMOS Analog Switches
  • DG411L - Precision Monolithic Quad SPST Low-Voltage CMOS Analog Switches
  • DG411LE - Quad SPST Switches
  • DG412 - Precision Monolithic Quad SPST CMOS Analog Switches
  • DG412HS - Precision Monolithic Quad SPST CMOS Analog Switches
  • DG412L - Precision Monolithic Quad SPST Low-Voltage CMOS Analog Switches

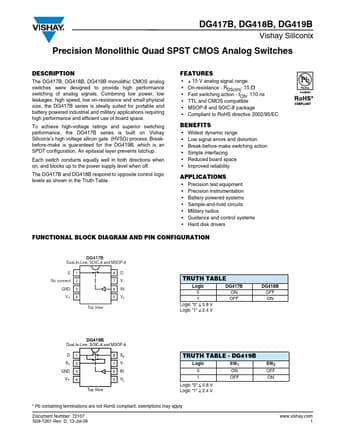

Full PDF Text Transcription

Click to expand full text
DG417B, DG418B, DG419B Vishay Siliconix Precision Monolithic Quad SPST CMOS Analog Switches DESCRIPTION The DG417B, DG418B, DG419B monolithic CMOS analog switches were designed to provide high performance switching of analog signals. Combining low power, low leakages, high speed, low on-resistance and small physical size, the DG417B series is ideally suited for portable and battery powered industrial and military applications requiring high performance and efficient use of board space. To achieve high-voltage ratings and superior switching performance, the DG417B series is built on Vishay Siliconix’s high voltage silicon gate (HVSG) process. Breakbefore-make is guaranteed for the DG419B, which is an SPDT configuration. An epitaxial layer prevents latchup.
