DG412HS, DG411HS - Precision Monolithic Quad SPST CMOS Analog Switches

Vishay

📥 Download Datasheet

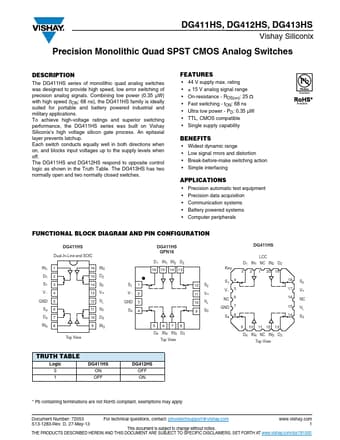

DG412HS Datasheet Preview — This datasheet PDF includes multiple part numbers: DG412HS, DG411HS. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DG412HS, DG411HS
Manufacturer	Vishay
File Size	210.75 KB
Description	Precision Monolithic Quad SPST CMOS Analog Switches
Datasheet	DG411HS-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: DG412HS, DG411HS. Please refer to the document for exact specifications by model.

DG412HS Product details

Description

The DG411HS series of monolithic quad analog switches was designed to provide high speed, low error switching of precision analog signals.

Features

44 V supply max. rating.
± 15 V analog signal range.
On-resistance - RDS(on): 25 .
Fast switching - tON: 68 ns.
Ultra low power - PD: 0.35 µW.
TTL, CMOS compatible.
Single supply capability.
