DG2043 - Quad SPST Analog Switch

Download the DG2043 datasheet PDF (DG2041 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for quad spst analog switch.

Description

The DG2041/2042/2043 are quad single-pole/single-throw monolithic CMOS analog switch designed for high performance switching of analog signals.

Features

  • Low Voltage Operation (1.8 V to 5.5 V).
  • Low On-Resistance - RDS(on): 1 .
  • Fast Switching - 14 ns tON.
  • Low Charge Injection - QINJ: 1 pC.
  • Low Power Consumption.
  • TTL/CMOS Compatible.
  • TSSOP-16 and QFN-16 Packages.
  • Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DG2041-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DG2043
Manufacturer Vishay
File Size 229.09 KB
Description Quad SPST Analog Switch
Datasheet download datasheet DG2043 Datasheet

📁 Similar Datasheet

  • DG200 - CMOS Dual/Quad SPST Analog Switches (Harris Corporation)
  • DG2001 - LOW - VOLTAGE SINGLE SPDT ANALOG SWITCH (Vishay Siliconix)
  • DG2003 - (DG2003 - DG2005) Low-Voltage Dual SPST Analog Switch (Vishay Siliconix)
  • DG2004 - (DG2003 - DG2005) Low-Voltage Dual SPST Analog Switch (Vishay Siliconix)
  • DG2005 - (DG2003 - DG2005) Low-Voltage Dual SPST Analog Switch (Vishay Siliconix)
  • DG200A - Monolithic Dual SPST CMOS Analog Switch (TEMICs)
  • DG200A - Dual Monolithic SPST CMOS Analog Switch (Maxim)
  • DG201 - CMOS Quad SPST Analog Switch (Intersil Corporation)
  • DG201 - CMOS Dual/Quad SPST Analog Switches (Harris Corporation)
  • DG2011 - Single SPDT Analog Switch (Vishay Siliconix)
Other Datasheets by Vishay
  • DG2041 - Quad SPST Analog Switch
  • DG2042 - Quad SPST Analog Switch
  • DG200A_MIL - Monolithic Dual SPST CMOS Analog Switch
  • DG2026 - Dual SPDT Analog Switch
  • DG202B - Improved Quad CMOS Analog Switches
  • DG2037 - Dual SPST Analog Switch
  • DG2038 - Dual SPST Analog Switch
  • DG2039 - Dual SPST Analog Switch

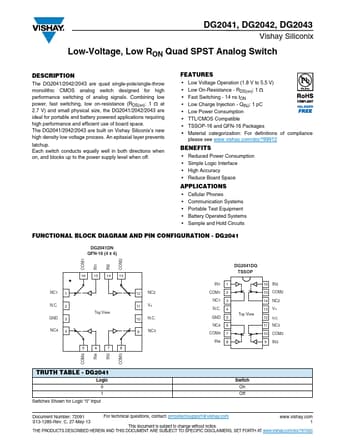

Full PDF Text Transcription

Click to expand full text
DG2041, DG2042, DG2043 Vishay Siliconix Low-Voltage, Low RON Quad SPST Analog Switch DESCRIPTION The DG2041/2042/2043 are quad single-pole/single-throw monolithic CMOS analog switch designed for high performance switching of analog signals. Combining low power, fast switching, low on-resistance (RDS(on): 1  at 2.7 V) and small physical size, the DG2041/2042/2043 are ideal for portable and battery powered applications requiring high performance and efficient use of board space. The DG2041/2042/2043 are built on Vishay Siliconix’s new high density low voltage process. An epitaxial layer prevents latchup. Each switch conducts equally well in both directions when on, and blocks up to the power supply level when off. FEATURES • Low Voltage Operation (1.8 V to 5.
