DF1501M, DF15005M - 1.5A Glass Passivated Bridge Rectifier

Name: DF1501M
SKU: DF1501M-1177242

Vishay

The DF1501M by Vishay is a 1.5A Glass Passivated Bridge Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	DF1501M, DF15005M
Manufacturer	Vishay
File Size	53.52 KB
Description	1.5A Glass Passivated Bridge Rectifier
Datasheet	DF15005M-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: DF1501M, DF15005M. Please refer to the document for exact specifications by model.

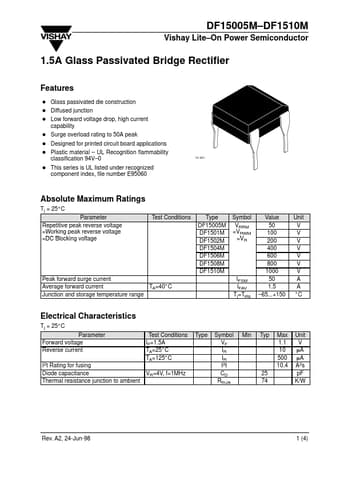

Additional preview pages of the DF1501M datasheet.

D Glass passivated die construction D Diffused junction D Low forward voltage drop, high current capability D Surge overload rating to 50A peak D Designed for printed circuit board.
