CS206 - Thick Film Resistor

Vishay

📥 Download Datasheet

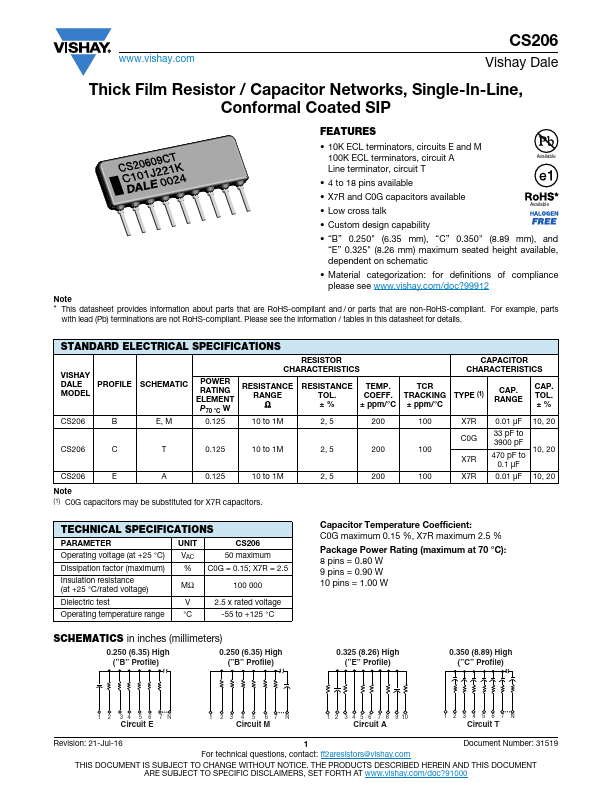

CS206 Datasheet Preview — Preview of CS206 PDF

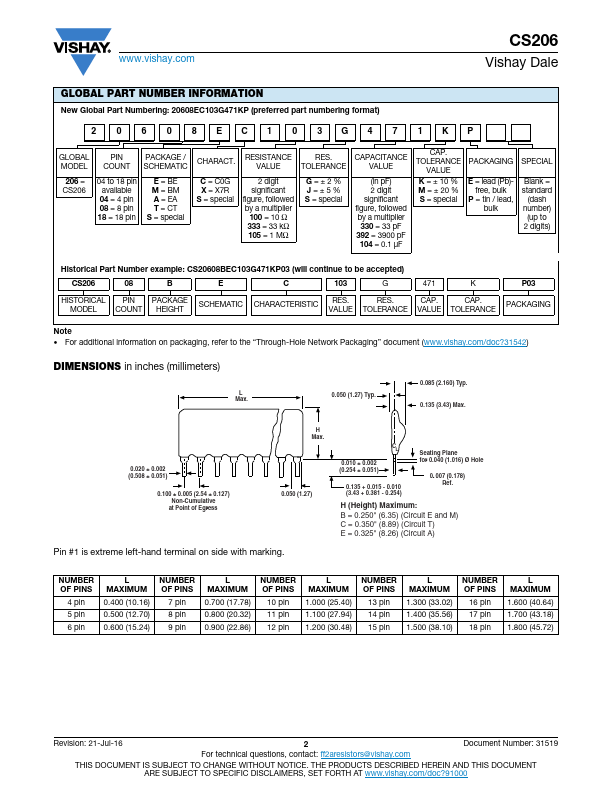

datasheet Preview Page 2

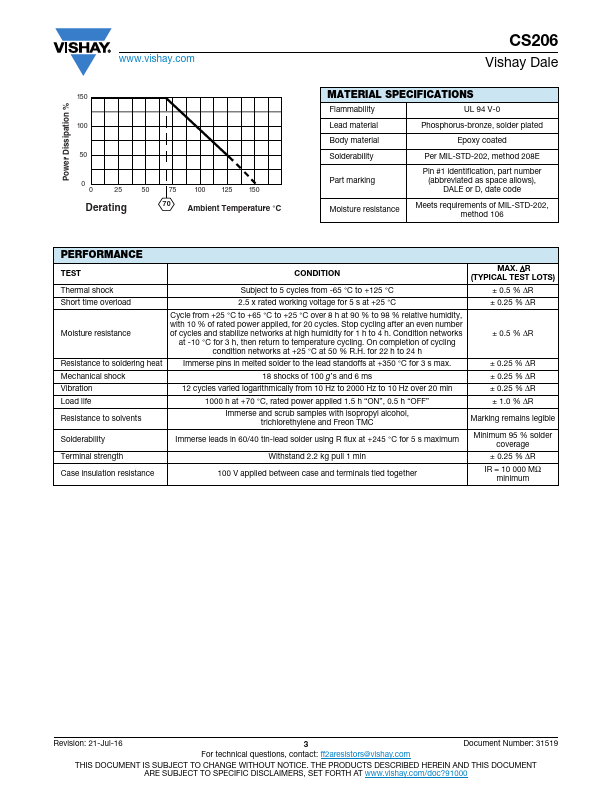

datasheet Preview Page 3

Datasheet Details

Part number	CS206
Manufacturer	Vishay
File Size	335.41 KB
Description	Thick Film Resistor
Datasheet	CS206-Vishay.pdf

CS206 Product details

Features

10K ECL terminators, circuits E and M 100K ECL terminators, circuit A Line terminator, circuit T Available.
4 to 18 pins available.
X7R and C0G capacitors available.
Low cross talk Available.
Custom design capability.
“B” 0.250" (6.35 mm), “C” 0.350" (8.89 mm), and “E” 0.325" (8.26 mm) maximum seated height available, dependent on schematic.
Material categorization: for definitions of compliance please see www. vishay. com/doc.
