BZX85B100 - Zener Diodes

BZX85B100 Description

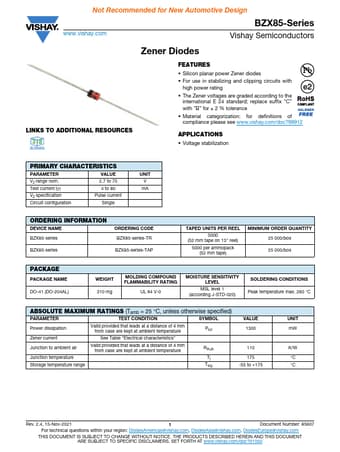

Not Recommended for New Automotive Design www.vishay.com BZX85-Series Vishay Semiconductors Zener Diodes LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Mo.

BZX85B100 Features

* Silicon planar power Zener diodes
* For use in stabilizing and clipping circuits with high power rating
* The Zener voltages are graded according to the international E 24 standard; replace suffix “C” with “B” for ± 2 % tolerance
* Material categorization: for defin

BZX85B100 Applications

* Voltage stabilization PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Circuit configuration 2.7 to 75 4 to 80 Pulse current Single UNIT V mA ORDERING INFORMATION DEVICE NAME BZX85-series ORDERING CODE BZX85-series-TR BZX85-series BZX85-seri
