BZX85B10 - Zener Diodes

Download the BZX85B10 datasheet PDF. This datasheet also covers the BZX85B100 variant, as both devices belong to the same zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Silicon planar power Zener diodes.
  • For use in stabilizing and clipping circuits with high power rating.
  • The Zener voltages are graded according to the international E 24 standard; replace suffix “C” with “B” for ± 2 % tolerance.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZX85B100-Vishay.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BZX85B10 Silicon Epitaxial Planar Z-Diodes Vishay Telefunken
BZX85B10 ZENER DIODES EIC
BZX85B10 SILICON PLANAR POWER ZENER DIODES SEMTECH
BZX85B100 ZENER DIODES EIC
BZX85B11 Silicon Epitaxial Planar Z-Diodes Vishay Telefunken

Other Datasheets by Vishay

Part Number Description
BZX85B100 Zener Diodes
BZX85B11 Zener Diodes
BZX85B12 Zener Diodes
BZX85B13 Zener Diodes
BZX85B15 Zener Diodes

Full PDF Text Transcription

Click to expand full text

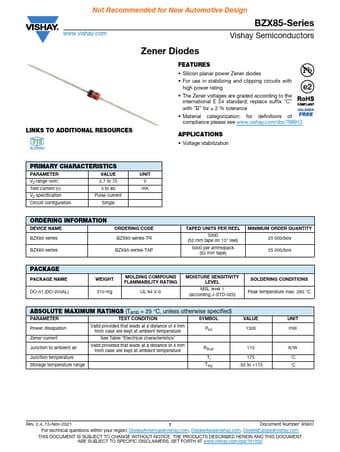

Not Recommended for New Automotive Design www.vishay.com BZX85-Series Vishay Semiconductors Zener Diodes LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models FEATURES • Silicon planar power Zener diodes • For use in stabilizing and clipping circuits with high power rating • The Zener voltages are graded according to the international E 24 standard; replace suffix “C” with “B” for ± 2 % tolerance • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS • Voltage stabilization PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Circuit configuration 2.
