BZX84B22-G, BZX84C2V4-G - Small Signal Zener Diodes

Vishay

Datasheet Details

Part number	BZX84B22-G, BZX84C2V4-G
Manufacturer	Vishay
File Size	121.15 KB
Description	Small Signal Zener Diodes

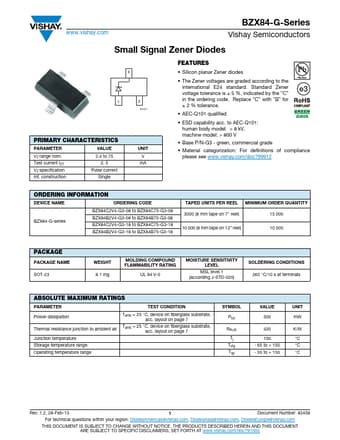

Datasheet	BZX84C2V4-G-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: BZX84B22-G, BZX84C2V4-G. Please refer to the document for exact specifications by model.

Silicon planar Zener diodes.
The Zener voltages are graded according to the international E24 standard. Standard Zener voltage tolerance is ± 5 %, indicated by the “C” in the ordering code. Replace “C” with “B” for ± 2 % tolerance.
AEC-Q101 qualified.
ESD capability acc. to AEC-Q101: human body model: > 8 kV, machine model: > 800 V.
Base P/N-G3 - green, commercial grade.
Material categorization: For definitions of compliance please see www.
