BZD27C10P-M, BZD27C3V6P-M - Zener Diodes

Vishay

Datasheet Details

Part number	BZD27C10P-M, BZD27C3V6P-M
Manufacturer	Vishay
File Size	117.68 KB
Description	Zener Diodes

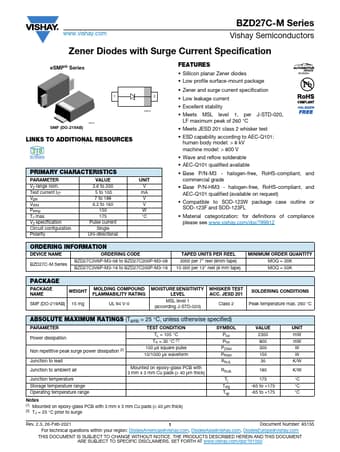

Datasheet	BZD27C3V6P-M-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: BZD27C10P-M, BZD27C3V6P-M. Please refer to the document for exact specifications by model.

Sillicon planar Zener diodes Available.
Low profile surface-mount package.
Zener and surge current specification.
Low leakage current.
Excellent stability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
Meets JESD 201 class 2 whisker test.
ESD capability according to AEC-Q101: human body model: > 8 kV machine model: > 800 V.
Wave and reflow solderable.
AEC-Q101 qualified available.
