BY520-14E Glass Passivated Junction Fast Switching Rectifier

BY520-14E Description

www.vishay.com Not for New Designs BY520-14E, BY520-16E Vishay General Semiconductor Glass Passivated Junction Fast Switching Rectifier SUPERECTIFI.

BY520-14E Features

* Superectifier structure for high reliability condition
* Cavity-free glass-passivated junction
* 24 mils lead wire diameter
* Fast switching for high efficiency
* Low leakage current
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material

BY520-14E Applications

* High voltage rectification
* Snubber circuit of camera flash MECHANICAL DATA Case: DO-41 (DO-204AL), molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: matte tin plated leads, solderable per J-

📥 Download Datasheet

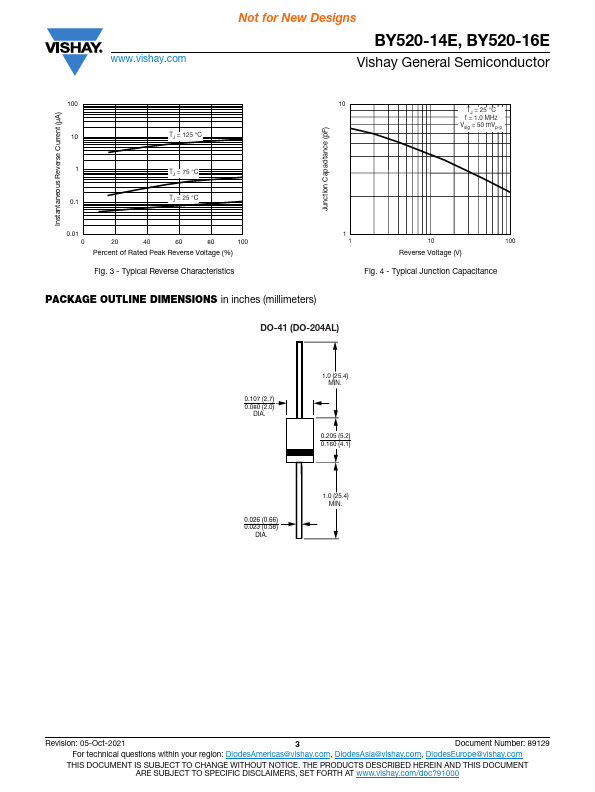

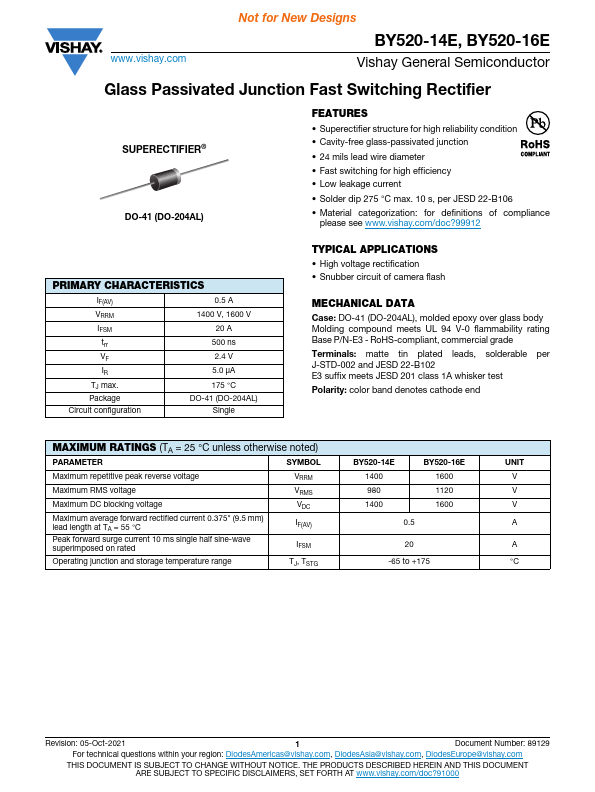

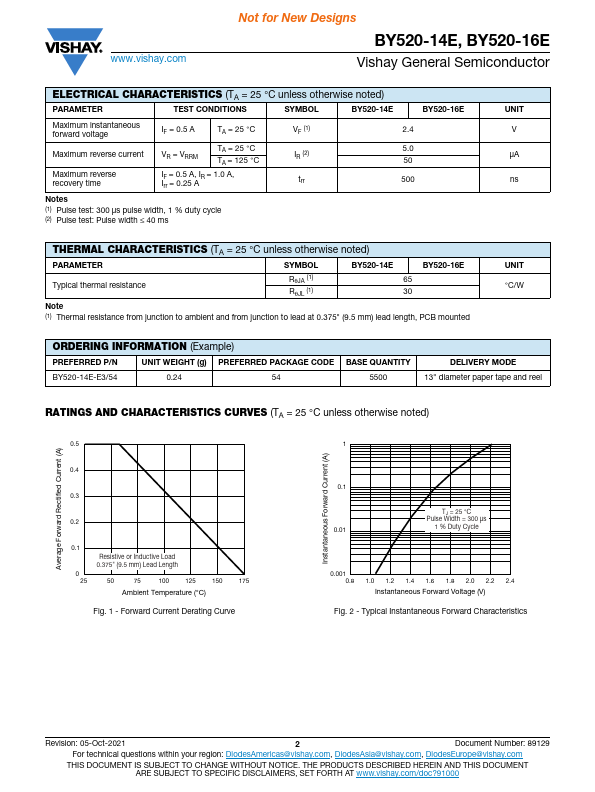

Preview of BY520-14E PDF
