BU2510 - Bridge Rectifiers

Download the BU2510 datasheet PDF. This datasheet also covers the BU2506 variant, as both devices belong to the same bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • UL recognition file number E312394.
  • Thin single in-line package.
  • Glass passivated chip junction.
  • Superior thermal conductivity Available.
  • Solder dip 275 °C max. 10 s, per JESD 22-B106.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BU2506-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BU2510
Manufacturer Vishay
File Size 114.21 KB
Description Bridge Rectifiers
Datasheet download datasheet BU2510 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BU2515AF Silicon Diffused Power Transistor NXP
BU2515AF SILICON POWER TRANSISTOR SavantIC
BU2515AF NPN Transistor INCHANGE
BU2515AX NPN Transistor INCHANGE
BU2515AX Silicon Diffused Power Transistor NXP

Other Datasheets by Vishay

Part Number Description
BU2510-E3 Bridge Rectifiers
BU2510-E3 (BU2506-E3 - BU2510-E3) Bridge Rectifiers
BU2510-M3 Bridge Rectifiers
BU2506 Bridge Rectifiers
BU2506-E3 Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

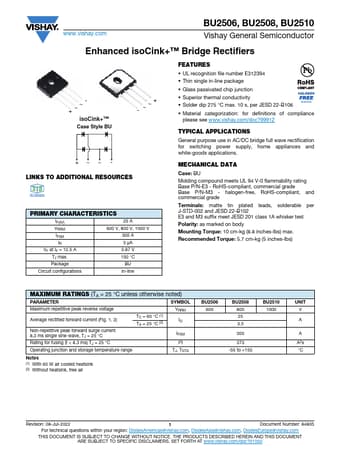

www.vishay.com BU2506, BU2508, BU2510 Vishay General Semiconductor Enhanced isoCink+™ Bridge Rectifiers + ~~ isoCink+™ Case Style BU - ~~+ +~~ - LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM IR VF at IF = 12.5 A TJ max. Package 25 A 600 V, 800 V, 1000 V 300 A 5 μA 0.87 V 150 °C BU Circuit configurations In-line FEATURES • UL recognition file number E312394 • Thin single in-line package • Glass passivated chip junction • Superior thermal conductivity Available • Solder dip 275 °C max. 10 s, per JESD 22-B106 • Material categorization: for definitions of compliance please see www.vishay.
