BAV23C-V-G - Small Signal Switching Diode

Vishay

Datasheet Details

Part number	BAV23C-V-G
Manufacturer	Vishay
File Size	63.76 KB
Description	Small Signal Switching Diode

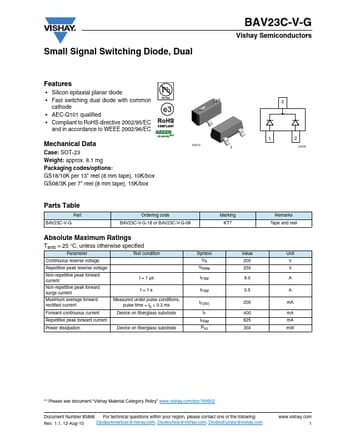

Datasheet	BAV23C-V-G-Vishay.pdf

Silicon epitaxial planar diode.
Fast switching dual diode with common cathode.
AEC-Q101 qualified.
Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC Mechanical Data Case: SOT-23 Weight: approx. 8.1 mg Packaging codes/options: GS18/10K per 13" reel (8 mm tape), 10K/box GS08/3K per 7" reel (8 mm tape), 15K/box 20512 1 3 12 21670 Parts Table Part BAV23C-V-G Ordering code BAV23C-V-G-18 or BAV23C-V-G-08 Marking KT7 Absolute Maximum.
