ACAS0606ATAU Datasheet (Vishay) - Precision Gold Terminated Thin Film Chip Resistor Array

ACAS0606ATAU, Precision Gold Terminated Thin Film Chip Resistor Array

EIA size Metric size Configuration, isolated Design: All equal values (AE) Different values (DF) Resistance range Absolute tolerance Relative tolerance Absolute temperature coefficient Relative TCR Max.

resistance ratio Rmin./Rmax.

Rated dissipation: P70 Element Package Operating voltage, Umax.

AC/D

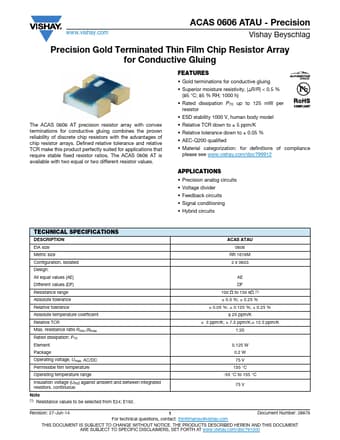

www.vishay.com ACAS 0606 ATAU - Precision Vishay Beyschlag Precision Gold Terminated Thin Film Chip Resistor Array for Conductive Gluing The ACAS 0606 AT precision resistor array with convex terminations for conductive gluing combines the proven reliability of discrete chip resistors with the advantages of chip resistor arrays.

Defined relative tolerance and relative TCR make this product perfectly suited for applications that require stable fixed resistor ratios.

The ACAS 0606 AT is availabl

ACAS0606ATAU Features

* Gold terminations for conductive gluing

* Superior moisture resistivity, |R/R| < 0.5 % (85 °C; 85 % RH; 1000 h)

* Rated dissipation P70 up to 125 mW per resistor

* ESD stability 1000 V, human body model

* Relative TCR down to ± 5 ppm/K

* Relative t
