| Part number | 516D106M400PR6AE3 |
|---|---|
| Manufacturer | Vishay |
| File Size | 92.52 KB |
| Description | Aluminum Capacitor |
| Datasheet |

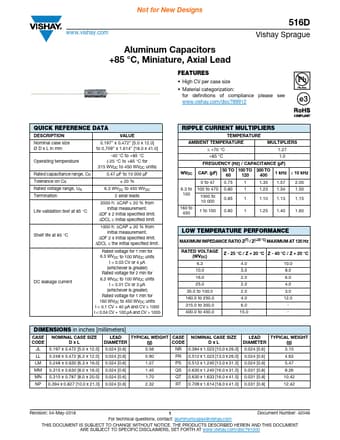

 516D106M400PR6AE3 Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: 516D106M400PR6AE3, 516D. Please refer to the document for exact specifications by model. |
|
|
VALUE Nominal case size Ø D x L in mm 0.197" x 0.472" [5.0 x 12.0] to 0.709" x 1.614" [18.0 x 41.0] Operating temperature Rated capacitance range, CR Tolerance on CR Rated voltage range, UR Termination -40 °C to +85 °C (-25 °C to +85 °C for 315 WVDC to 450 WVDC units) 0.47 μF to 10 000 μF ± 20 % 6.3 WVDC to 450 WVDC 2 axial leads Life validation test at 85 °C 2000 h: ΔCAP ≤ 20 % from initial measurement.ΔDF x 2 initial specified limit.ΔDCL ≤ initial specified limit.Shelf life at 85 °C
