511D106M160CD4D - Aluminum Capacitor

Download the 511D106M160CD4D datasheet PDF. This datasheet also covers the 511D variant, as both devices belong to the same aluminum capacitor family and are provided as variant models within a single manufacturer datasheet.

Description

VALUE Nominal case size Ø D x L in mm 0.236" x 0.433" [6.0 x 11.0] to 0.709" x 1.417" [18.0 x 36.0] Operating temperature -40 °C to +105 °C Rated capacitance range, CR Tolerance on CR Rated voltage range, UR Termination 1 μF to 10 000 μF ± 20 % 6.3 WVDC to 250 WVDC 2 or 3 radial leads Life

Features

  • +105 °C.
  • Suitable for long life.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (511D-Vishay.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
5110 Graphic LCD Nokia
51191-0200 HEADER CONNECTOR Molex
51191-0xxx HEADER CONNECTOR Molex
51191-1xxx HEADER CONNECTOR Molex
51191-2000 HEADER CONNECTOR Molex

Other Datasheets by Vishay

Part Number Description
511D106M100BB4D Aluminum Capacitor
511D106M250CG4D Aluminum Capacitor
511D107M010AA4D Aluminum Capacitor
511D107M025BB4D Aluminum Capacitor
511D107M040CC4D Aluminum Capacitor

Full PDF Text Transcription

Click to expand full text

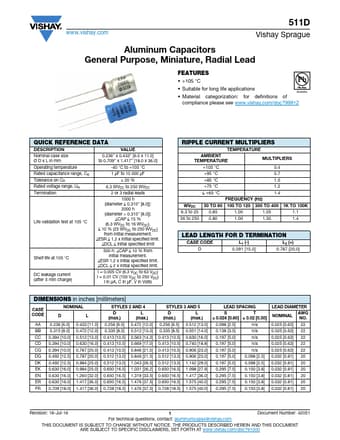

www.vishay.com 511D Vishay Sprague Aluminum Capacitors General Purpose, Miniature, Radial Lead FEATURES • +105 °C • Suitable for long life applications Available • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 QUICK REFERENCE DATA DESCRIPTION VALUE Nominal case size Ø D x L in mm 0.236" x 0.433" [6.0 x 11.0] to 0.709" x 1.417" [18.0 x 36.0] Operating temperature -40 °C to +105 °C Rated capacitance range, CR Tolerance on CR Rated voltage range, UR Termination 1 μF to 10 000 μF ± 20 % 6.3 WVDC to 250 WVDC 2 or 3 radial leads Life validation test at 105 °C 1000 h (diameter  0.315" [8.0]): 2000 h (diameter > 0.315" [8.0]): CAP  15 % (6.3 WVDC to 16 WVDC),  10 % (25 WVDC to 250 WVDC) from initial measurement. ESR  1.
