2KBP005M - Glass Passivated Single-Phase Bridge Rectifier

Vishay

The 2KBP005M by Vishay is a Glass Passivated Single-Phase Bridge Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

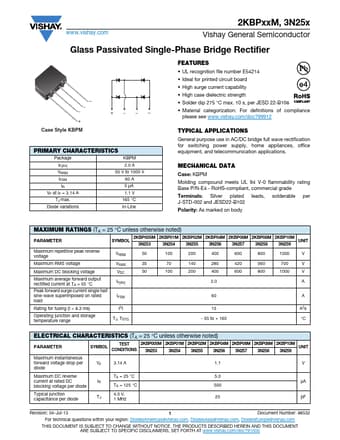

2KBP005M Glass Passivated Single-Phase Bridge Rectifier by Vishay - Datasheet Preview — Official preview page of the 2KBP005M Glass Passivated Single-Phase Bridge Rectifier datasheet (Vishay).

Datasheet Details

Part number	2KBP005M
Manufacturer	Vishay
File Size	248.02 KB
Description	Glass Passivated Single-Phase Bridge Rectifier
Datasheet	2KBP005M-Vishay.pdf
Additional preview pages of the 2KBP005M datasheet.

2KBP005M Product details

Features

UL recognition file number E54214.
Ideal for printed circuit board.
High surge current capability.
High case dielectric strength.
Solder dip 275 °C max. 10 s, per JESD 22-B106.
Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.
