25TTS12, 25TTS08 Phase Control SCR

25TTS12 Description

25TTS High Voltage Series Vishay High Power Products Phase Control SCR, 25 A 2 (A) TO-220AB 1 (K) (G) 3 PRODUCT SUMMARY VT at 16 A ITSM VRRM < 1..
FEATURES The 25TTS High Voltage Series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applica.

25TTS12 Applications

* The glass passivation technology used has reliable operation up to 125 °C junction temperature. Typical applications are in input rectification (soft start) and these products are designed to be used with Vishay HPP input diodes, switches and output rectifiers which are available in identical packa

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 25TTS12, 25TTS08. Please refer to the document for exact specifications by model.

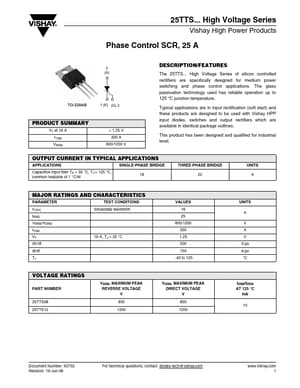

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
25TTS12, 25TTS08
Manufacturer
Vishay ↗
File Size
125.76 KB
Datasheet
25TTS08-Vishay.pdf
Description
Phase Control SCR
Note
This datasheet PDF includes multiple part numbers: 25TTS12, 25TTS08.
Please refer to the document for exact specifications by model.
