240U80D, 240UR60D Standard Recovery Diodes

Vishay

Description

240U(R)..Series Vishay High Power Products Standard Recovery Diodes (Stud Version), 320 A DO-205AB (DO-9) .

📥 Download Datasheet

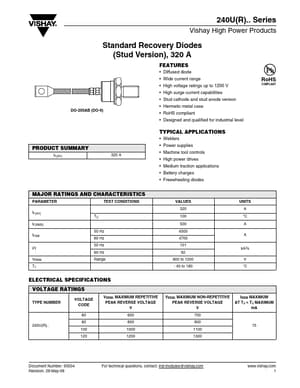

240U80D Datasheet Preview — This datasheet PDF includes multiple part numbers: 240U80D, 240UR60D. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 240U80D, 240UR60D
Manufacturer: Vishay ↗
File Size: 191.50 KB
Datasheet: 240UR60D_Vishay.pdf
Description: Standard Recovery Diodes
Note: This datasheet PDF includes multiple part numbers: 240U80D, 240UR60D.
Please refer to the document for exact specifications by model.

Features

* Diffused diode
* Wide current range
* High voltage ratings up to 1200 V
* High surge current capabilities
* Stud cathode and stud anode version
* Hermetic metal case
* RoHS compliant
* Designed and qualified for industrial level PROD

Applications

* Welders
* Power supplies
* Machine tool controls
* High power drives
* Medium traction applications
* Battery charges
* Freewheeling diodes RoHS COMPLIANT MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) IF(RMS) IFSM I2
