20VLP10-R - AC Line Rated Ceramic Disc Capacitors

Vishay

Download the 20VLP10-R datasheet PDF. This datasheet also covers the 20VLD90-R variant, as both devices belong to the same ac line rated ceramic disc capacitors family and are provided as variant models within a single manufacturer datasheet.

Description

Ceramic Class Ceramic Dielectric Voltage (VAC) Min.

Capacitance (pF) Max.

INSULATION RESISTANCE Min.

Features

Complying with IEC 60384-14 3rd edition.
High reliability.
Radial leads.
Singlelayer AC disc safety capacitors.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 QUICK.

📥 Download Datasheet

20VLP10-R ac line rated ceramic disc capacitors by Vishay - Datasheet Preview — Note: The manufacturer provides a single datasheet file (20VLD90-R-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	20VLP10-R
Manufacturer	Vishay
File Size	136.00 KB
Description	AC Line Rated Ceramic Disc Capacitors
Datasheet	20VLP10-R Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
20V45CT	20A 45V Trench Schottky Diode	LIPTAI
20VZ11	Low Power-Loss Voltage Regulators	Sharp Electrionic Components
20VZ51	PQ20VZ51	Sharp Electrionic Components

Other Datasheets by Vishay

Part Number	Description
20VLD90-R	AC Line Rated Ceramic Disc Capacitors
20VLS10-R	AC Line Rated Ceramic Disc Capacitors
20VLS20-R	AC Line Rated Ceramic Disc Capacitors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

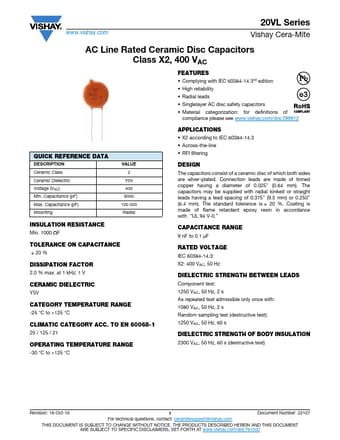

www.vishay.com 20VL Series Vishay Cera-Mite AC Line Rated Ceramic Disc Capacitors Class X2, 400 VAC FEATURES • Complying with IEC 60384-14 3rd edition • High reliability • Radial leads • Singlelayer AC disc safety capacitors • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 QUICK REFERENCE DATA DESCRIPTION Ceramic Class Ceramic Dielectric Voltage (VAC) Min. Capacitance (pF) Max. Capacitance (pF) Mounting VALUE 2 Y5V 400 9000 100 000 Radial INSULATION RESISTANCE Min. 1000 F TOLERANCE ON CAPACITANCE ± 20 % DISSIPATION FACTOR 2.0 % max. at 1 kHz; 1 V CERAMIC DIELECTRIC Y5V CATEGORY TEMPERATURE RANGE -25 °C to +125 °C CLIMATIC CATEGORY ACC.
