1N5395, 1N5391 Datasheet - Vishay

1N5395, 1N5391, General Purpose Plastic Rectifier

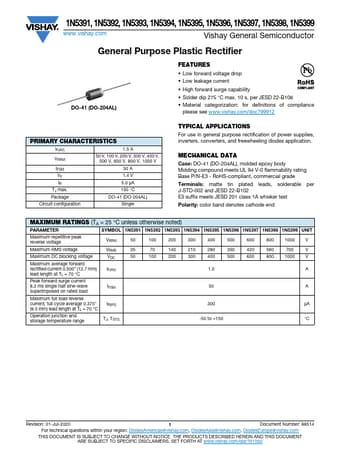

1N5391, 1N5392, 1N5393, 1N5394, 1N5395, 1N5396, 1N5397, 1N5398, 1N5399 www.vishay.com Vishay General Semiconductor General Purpose Plastic Rectifie

Features

* Low forward voltage drop
* Low leakage current
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 PRIMARY CHARACTERISTICS IF(AV) VRRM

Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes application. MECHANICAL DATA Case: DO-41 (DO-204AL), molded epoxy body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: matte tin
