1N4761A - Zener Diodes

Download the 1N4761A datasheet PDF. This datasheet also covers the 1N4728A variant, as both devices belong to the same zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Silicon planar power Zener diodes.
  • For use in stabilizing and clipping circuits with high power rating.
  • Standard Zener voltage tolerance is ± 5 %.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N4728A-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N4761A
Manufacturer Vishay
File Size 93.27 KB
Description Zener Diodes
Datasheet download datasheet 1N4761A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N4761A Zener Diode Formosa MS
1N4761A SILICON ZENER DIODES Central Semiconductor
1N4761A 1W Zener Diodes TAITRON
1N4761A 1.0W ZENER DIODE Diodes
1N4761A Zener diode Formosa MS

Other Datasheets by Vishay

Part Number Description
1N4761 Zener Diodes
1N4760 Zener Diodes
1N4760A Zener Diodes
1N4762 Zener Diodes
1N4762A Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

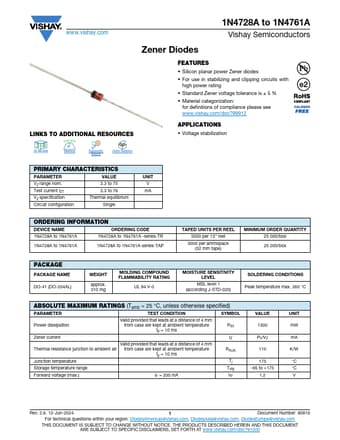

www.vishay.com 1N4728A to 1N4761A Vishay Semiconductors Zener Diodes LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples FEATURES • Silicon planar power Zener diodes • For use in stabilizing and clipping circuits with high power rating • Standard Zener voltage tolerance is ± 5 % • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS • Voltage stabilization PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Circuit configuration 3.3 to 75 3.
