1N4005GP - Glass Passivated Junction Rectifier

Download the 1N4005GP datasheet PDF. This datasheet also covers the 1N4001GP variant, as both devices belong to the same glass passivated junction rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Superectifier structure for high reliability.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N4001GP-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N4005GP
Manufacturer Vishay
File Size 79.38 KB
Description Glass Passivated Junction Rectifier
Datasheet download datasheet 1N4005GP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N4005GP 1 Amp. Glass Passivated Junction Rectifier FAGOR
1N4005GP General Purpose Rectifiers Fairchild Semiconductor
1N4005GP SINTERED GLASS JUNCTION PLASTIC RECTIFIER Gulf Semiconductor
1N4005GP Glass Passivated Junction Plastic Rectifiers Taiwan Semiconductor
1N4005GP PLASTIC GLASS PASSIVATED RECTIFIERS Digitron Semiconductors

Other Datasheets by Vishay

Part Number Description
1N4005GP-M3 Glass Passivated Junction Plastic Rectifier
1N4001GP Glass Passivated Junction Rectifier
1N4001GP-M3 Glass Passivated Junction Plastic Rectifier
1N4002GP Glass Passivated Junction Rectifier
1N4002GP-M3 Glass Passivated Junction Plastic Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

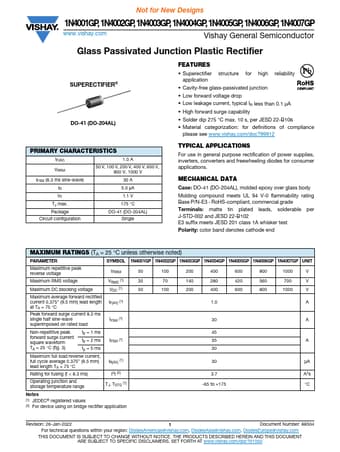

Not for New Designs 1N4001GP, 1N4002GP, 1N4003GP, 1N4004GP, 1N4005GP, 1N4006GP, 1N4007GP www.vishay.com Vishay General Semiconductor Glass Passivated Junction Plastic Rectifier SUPERECTIFIER® DO-41 (DO-204AL) PRIMARY CHARACTERISTICS IF(AV) VRRM 1.0 A 50 V, 100 V, 200 V, 400 V, 600 V, 800 V, 1000 V IFSM (8.3 ms sine-wave) 30 A IR 5.0 μA VF 1.1 V TJ max. Package 175 °C DO-41 (DO-204AL) Circuit configuration Single FEATURES • Superectifier structure for high reliability application • Cavity-free glass-passivated junction • Low forward voltage drop • Low leakage current, typical IR less than 0.1 μA • High forward surge capability • Solder dip 275 °C max. 10 s, per JESD 22-B106 • Material categorization: for definitions of compliance please see www.vishay.
