173D104X9035UWe3 - Solid-Electrolyte Capacitors

Download the 173D104X9035UWe3 datasheet PDF. This datasheet also covers the 173D variant, as both devices belong to the same solid-electrolyte capacitors family and are provided as variant models within a single manufacturer datasheet.

Features

  • Axial through-hole terminations: tin / lead (SnPb), 100 % tin (RoHS-compliant).
  • Miniature axial-lead capacitors available in 5 sizes Available.
  • Precision molded in gold colored, flame retardant, thermosetting epoxy resin Available.
  • Laser marked for improved legibility and tapered end of case provides easy identification of positive terminal.
  • Standard orders are lead taped and reeled; orders under 500 are taped only.
  • Material cate.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (173D-Vishay.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1738U 1738U-Type Small Form-Factor Erbium-Doped Fiber Amplifier with Uncooled Pump Agere Systems
1738UAA 1738U-Type Small Form-Factor Erbium-Doped Fiber Amplifier with Uncooled Pump Agere Systems
1738UBA 1738U-Type Small Form-Factor Erbium-Doped Fiber Amplifier with Uncooled Pump Agere Systems

Other Datasheets by Vishay

Part Number Description
173D104X9050UWe3 Solid-Electrolyte Capacitors
173D105X9020UWe3 Solid-Electrolyte Capacitors
173D105X9025UWe3 Solid-Electrolyte Capacitors
173D105X9035VWe3 Solid-Electrolyte Capacitors
173D105X9050VWe3 Solid-Electrolyte Capacitors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

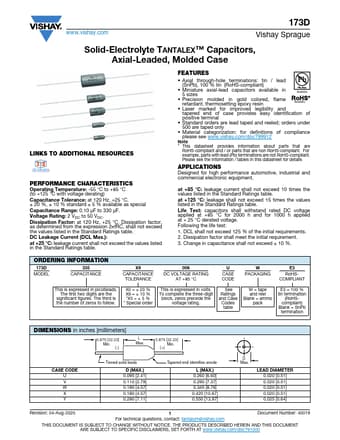

www.vishay.com 173D Vishay Sprague Solid-Electrolyte TANTALEX™ Capacitors, Axial-Leaded, Molded Case LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models PERFORMANCE CHARACTERISTICS Operating Temperature: -55 °C to +85 °C (to +125 °C with voltage derating) Capacitance Tolerance: at 120 Hz, +25 °C. ± 20 %, ± 10 % standard ± 5 % available as special Capacitance Range: 0.10 μF to 330 μF. Voltage Rating: 2 VDC to 50 VDC. Dissipation Factor: at 120 Hz, +25 °C. Dissipation factor, as determined from the expression 2fRC, shall not exceed the values listed in the Standard Ratings table. DC Leakage Current (DCL Max.): at +25 °C: leakage current shall not exceed the values listed in the Standard Ratings table.
