TZMB3V3 - Silicon Epitaxial Planar Z-Diodes

Download the TZMB3V3 datasheet PDF (TZM included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for silicon epitaxial planar z-diodes.

Features

  • D D D D D D Very sharp reverse characteristic Low reverse current level Available with tighter tolerances Very high stability Low noise VZ.
  • tolerance ± 2% 94 9371.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TZM-B.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TZMB3V3
Manufacturer Vishay
File Size 76.46 KB
Description Silicon Epitaxial Planar Z-Diodes
Datasheet download datasheet TZMB3V3 Datasheet

📁 Similar Datasheet

  • TZMB3V3-M - Small Signal Zener Diodes (Vishay)
  • TZMB3V0-M - Small Signal Zener Diodes (Vishay)
  • TZMB3V6-M - Small Signal Zener Diodes (Vishay)
  • TZMB3V9-M - Small Signal Zener Diodes (Vishay)
  • TZMB30-M - Small Signal Zener Diodes (Vishay)
  • TZMB33-M - Small Signal Zener Diodes (Vishay)
  • TZMB36-M - Small Signal Zener Diodes (Vishay)
  • TZMB39-M - Small Signal Zener Diodes (Vishay)
  • TZMB10-M - Small Signal Zener Diodes (Vishay)
  • TZMB11-M - Small Signal Zener Diodes (Vishay)
Other Datasheets by Vishay Telefunken
  • TZMB3V0 - Silicon Epitaxial Planar Z-Diodes
  • TZMB3V6 - Silicon Epitaxial Planar Z-Diodes
  • TZMB3V9 - Silicon Epitaxial Planar Z-Diodes
  • TZMB30 - Silicon Epitaxial Planar Z-Diodes
  • TZMB33 - Silicon Epitaxial Planar Z-Diodes
  • TZMB36 - Silicon Epitaxial Planar Z-Diodes
  • TZMB39 - Silicon Epitaxial Planar Z-Diodes
  • TZMB - Silicon Epitaxial Planar Z-Diodes

Full PDF Text Transcription

Click to expand full text

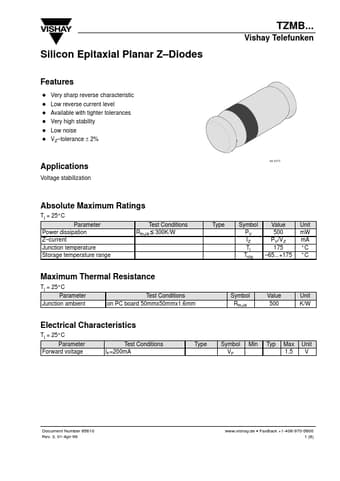

TZMB... Vishay Telefunken Silicon Epitaxial Planar Z–Diodes Features D D D D D D Very sharp reverse characteristic Low reverse current level Available with tighter tolerances Very high stability Low noise VZ–tolerance ± 2% 94 9371 Applications Voltage stabilization Absolute Maximum Ratings Tj = 25_C Parameter Power dissipation Z–current Junction temperature Storage temperature range Test Conditions RthJA 300K/W x Type Symbol PV IZ Tj Tstg Value 500 PV/VZ 175 –65...+175 Unit mW mA °C °C Maximum Thermal Resistance Tj = 25_C Parameter Junction ambient Test Conditions on PC board 50mmx50mmx1.6mm Symbol RthJA Value 500 Unit K/W Electrical Characteristics Tj = 25_C Parameter Forward voltage Test Conditions IF=200mA Type Symbol VF Min Typ Max 1.5 Unit V Document Number 85610 Rev.
