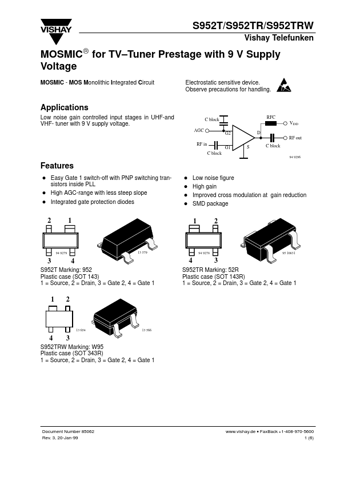

S952TRW - MOSMIC for TV-Tuner Prestage with 9 V Supply Voltage

Vishay Telefunken

Datasheet Details

Part number	S952TRW
Manufacturer	Vishay ↗ Telefunken
File Size	100.99 KB
Description	MOSMIC for TV-Tuner Prestage with 9 V Supply Voltage
Datasheet	S952TRW_VishayTelefunken.pdf

D Easy Gate 1 switch-off with PNP switching transistors inside PLL D High AGC-range with less steep slope D Integrated gate protection diodes 2 1 D D D D Low noise figure High gain Improved cross modulation at gain reduction SMD package 1 2 94 9279 13 579 94 9278 95 10831 3 4 4 3 S952T Marking: 952 Plastic case (SOT 143) 1 = Source, 2 = Drain, 3 = Gate 2, 4 = Gate 1 S952TR Marking: 52R Plastic case (SOT 143R) 1 = Source, 2 = Drain, 3 = Gate 2, 4 = Gate 1 1 2 13 654 13 566 4.
