BZX85C24 - Silicon Epitaxial Planar Z-Diodes

Features

  • D D D D D Sharp edge in reverse characteristics Low reverse current Low noise Very high stability Available with tighter tolerances.

📥 Download Datasheet

Datasheet Details

Part number BZX85C24
Manufacturer Vishay
File Size 58.84 KB
Description Silicon Epitaxial Planar Z-Diodes
Datasheet download datasheet BZX85C24 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BZX85C24 SILICON PLANAR POWER ZENER DIODES GOOD-ARK Electronics
BZX85C24 SILICON ZENER DIODES EIC discrete Semiconductors
BZX85C24 Zener Diodes Fairchild Semiconductor
BZX85C24 SILICON PLANAR POWER ZENER DIODES SEMTECH
BZX85C24 Zener Diodes Vishay

Other Datasheets by Vishay

Part Number Description
BZX85C3V0 Silicon Epitaxial Planar Z-Diodes
BZX85C5V6 Silicon Epitaxial Planar Z-Diodes
BZX85B Silicon Epitaxial Planar Z-Diodes
BZX85B10 Silicon Epitaxial Planar Z-Diodes
BZX85B11 Silicon Epitaxial Planar Z-Diodes

Full PDF Text Transcription

Click to expand full text

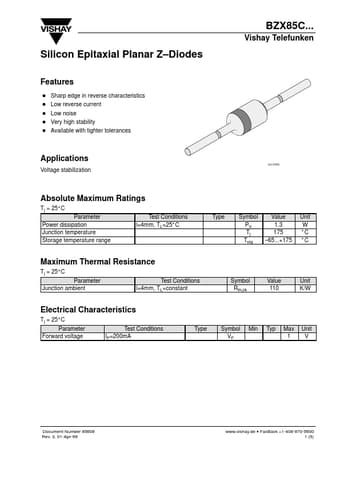

BZX85C... Vishay Telefunken Silicon Epitaxial Planar Z–Diodes Features D D D D D Sharp edge in reverse characteristics Low reverse current Low noise Very high stability Available with tighter tolerances Applications 94 9369 Voltage stabilization Absolute Maximum Ratings Tj = 25_C Parameter Power dissipation Junction temperature Storage temperature range Test Conditions l=4mm, TL=25°C Type Symbol PV Tj Tstg Value 1.3 175 –65...+175 Unit W °C °C Maximum Thermal Resistance Tj = 25_C Parameter Junction ambient Test Conditions l=4mm, TL=constant Symbol RthJA Value 110 Unit K/W Electrical Characteristics Tj = 25_C Parameter Forward voltage Test Conditions IF=200mA Type Symbol VF Min Typ Max 1 Unit V Document Number 85608 Rev. 3, 01-Apr-99 www.vishay.
