BZX85B30 - Silicon Epitaxial Planar Z-Diodes

Features

  • D D D D Sharp edge in reverse characteristics Low reverse current Low noise Very high stability.

📥 Download Datasheet

Datasheet Details

Part number BZX85B30
Manufacturer Vishay
File Size 56.68 KB
Description Silicon Epitaxial Planar Z-Diodes
Datasheet download datasheet BZX85B30 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BZX85B30 ZENER DIODES EIC
BZX85B30 SILICON PLANAR POWER ZENER DIODES SEMTECH
BZX85B30 Zener Diodes Vishay
BZX85B33 ZENER DIODES EIC
BZX85B33 SILICON PLANAR POWER ZENER DIODES SEMTECH

Other Datasheets by Vishay

Part Number Description
BZX85B33 Silicon Epitaxial Planar Z-Diodes
BZX85B36 Silicon Epitaxial Planar Z-Diodes
BZX85B39 Silicon Epitaxial Planar Z-Diodes
BZX85B3V0 Silicon Epitaxial Planar Z-Diodes
BZX85B3V3 Silicon Epitaxial Planar Z-Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

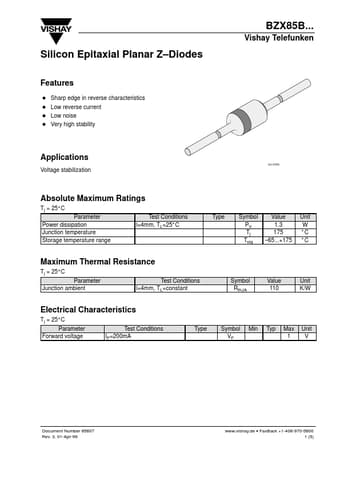

BZX85B... Vishay Telefunken Silicon Epitaxial Planar Z–Diodes Features D D D D Sharp edge in reverse characteristics Low reverse current Low noise Very high stability Applications 94 9369 Voltage stabilization Absolute Maximum Ratings Tj = 25_C Parameter Power dissipation Junction temperature Storage temperature range Test Conditions l=4mm, TL=25°C Type Symbol PV Tj Tstg Value 1.3 175 –65...+175 Unit W °C °C Maximum Thermal Resistance Tj = 25_C Parameter Junction ambient Test Conditions l=4mm, TL=constant Symbol RthJA Value 110 Unit K/W Electrical Characteristics Tj = 25_C Parameter Forward voltage Test Conditions IF=200mA Type Symbol VF Min Typ Max 1 Unit V Document Number 85607 Rev. 3, 01-Apr-99 www.vishay.de • FaxBack +1-408-970-5600 1 (5) BZX85B...
