BFR91A - Silicon NPN Planar RF Transistor

Vishay Telefunken

Datasheet Details

Part number	BFR91A
Manufacturer	Vishay Telefunken
File Size	112.71 KB
Description	Silicon NPN Planar RF Transistor
Datasheet	BFR91A_VishayTelefunken.pdf

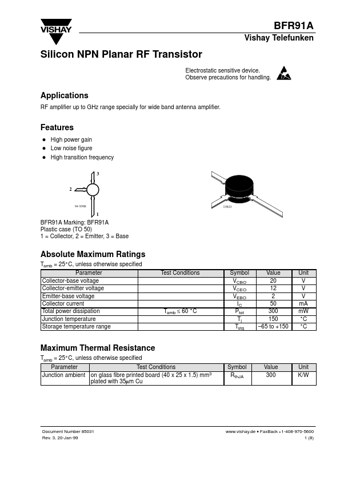

D High power gain D Low noise figure D High transition frequency 3 2 94 9308 13623 1 BFR91A Marking: BFR91A Plastic case (TO 50) 1 = Collector, 2 = Emitter, 3 = Base Absolute Maximum Ratings Tamb = 25_C, unless otherwise specified Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Total power dissipation Junction temperature Storage temperature range Test Conditions Symbol VCBO VCEO VEBO IC Ptot Tj Tstg Value 20 12 2 50 300 150.
65 to.
